Amplify signal receipt of mobile network operator in Asia & Australia
In Asia (except 3 main MNO of China), the main network carriers, or we say mobile network operators (MNO) are in the following list: Vodafone, Telenor, celcom, Smart, airtel, Jio and other local companies. And in Australia, the main MNO are Telstra, Optus and Vodafone.
Because there are many similarities during the mobile network operators of Asia and Australia, we are trying to analysis it in this article. If you are from other continents, click for more info of mobile network operators: South America, North America, Africa, Europe.
As you see, in your places in Asia or in Australia, there are so many network carriers for your choice, therefore you are probably using more than one kind of them, also maybe you and your friends or family are using the different services.
For example, when you are using Vodafone with 2G 3G 4G, meanwhile your second sim card is of telenor with 2G 3G 4G, now you may meet some problem is that, in the same place, the mobile signal receipt of 4G Vodafone is full bar but the receipt of 4G telenor is very weak. This situation is caused by the different frequency bands of these two network operators and the difference of distance from base towers.
Therefore, to strengthen the weak cell phone signal receipt of different mobile network operators, we need to choose cell phone signal booster matched the right frequency bands.
Here we would like to show you a chart to list the different frequency bands of different mobile network operators.
The frequency bands of the mobile network operators in Australia
|
Network Carrier |
Network Type |
Operating Band |
|
|
3G |
B1(2100), B5(850) |
|
4G |
B1 (2100), B3 (1800), B28 (700) |
|
|
|
2G |
B8 (900) |
|
3G |
B1 (2100), B8 (900) |
|
|
4G |
B1 (2100), B5 (850), B3 (1800) |
|
|
|
2G |
B8 (900) |
|
3G |
B1 (2100), B8 (900) |
|
|
4G |
B1 (2100), B3 (1800), B7 (2600), B28 (700), B40 (TD 2300) |
|
|
|
2G |
B3 (1800), B8 (900) |
|
3G |
B1 (2100), B8 (900) |
|
|
4G |
B3 (1800) |
|
|
|
2G |
B3 (1800), B8 (900) |
|
3G |
B1 (2100), B5 (850) |
|
|
4G |
B3 (1800), B28 (700) |
The frequency bands of the mobile network operators in Asia
|
Network Carrier |
Network Type |
Operating Band |
 |
2G GSM |
B3 (1800), B8 (900) |
|
3G UMTS |
B1 (2100), B8 (900) |
|
|
4G LTE |
B1 (2100), B3 (1800), B7 (2600), B20 (800) |
|
 |
2G GSM |
B3 (1800), B8 (900) |
|
3G UMTS |
B1 (2100), B5 (850) |
|
|
4G LTE |
B1 (2100), B3 (1800), B5 (850), B28a (700) |
|
 |
2G GSM |
B3 (1800), B8 (900) |
|
3G UMTS |
B1 (2100) |
|
|
4G LTE |
B3 (1800), B7 (2600) |
|
 |
2G GSM |
B3 (1800), B8 (900) |
|
3G UMTS |
B1 (2100), B8 (900) |
|
|
4G LTE |
B3 (1800) |
|
 |
2G GSM |
B1 (2100), B8 (900), B2(1900) |
|
3G UMTS |
B1 (2100), B9 (1800 Japan), B19 (800) |
|
|
4G LTE |
B1 (2100), B3 (1800), B19 (800), B21 (1500), B28b (700), B42 (TDD 3500) |
|
 |
2G GSM |
B3(1800), B8 (900) |
|
3G UMTS |
B1 (2100), B5 (850) |
|
|
4G LTE |
B3 (1800), B5 (850) |
|
 |
2G GSM |
B3 (1800), B8 (900) |
|
3G UMTS |
B1 (2100), B8 (900) |
|
|
4G LTE |
B1 (2100), B3 (1800), B7 (2600), B8 (900) |
According to the info above, you might find out that, no matter in Australia or in Asia, the most normal frequency bands of network operators are B8(900), B1(2100), B3(1800), B20(800), B28(700) and B7(2600).
If we still haven’t mentioned about the information of the network carriers that you are using, there is a website to check the frequency of the world: https://www.kimovil.com/ .
Lintratek has more than 10-year experience of supplying network solution and relevant device for users from the whole world, here we have some selection of full kit cell phone signal amplifier for you.
|
Optional Combination |
Full Kit Content |
Coverage |
Band Frequency |
AGC Function |
Network Carriers |
|
|

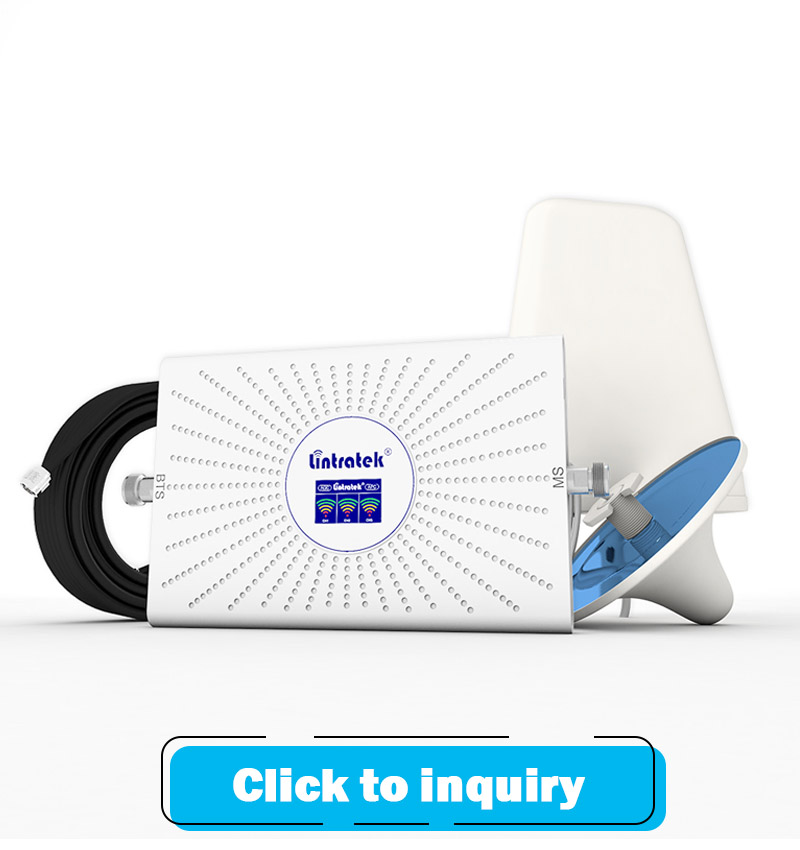

AA23 tri band*1 LPDA antenna*1 Ceiling antenna*1 10-15m cable*1 Power supply*1 Guide book*1 |
300-400sqm |
B5+B8+B3 √ B8+B3+B1 √ B8+B3+B20 √ |
YES |
|
|
|

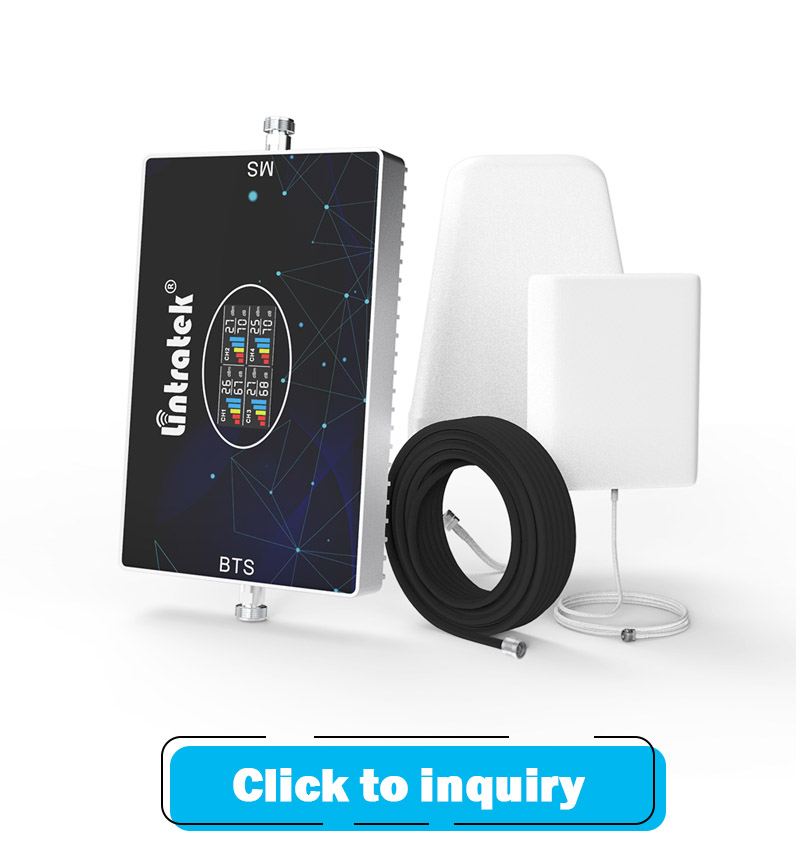

KW20L quad band*1 LPDA antenna*1 Panel antenna*1 10-15m cable*1 Power supply*1 Guide book*1 |
400-600sqm |
B5+B8+B3+B1 √ B8+B3+B1+B20 √ B8+B3+B1+B7 √ B8+B3+B1+B28 √ |
YES |
|
|
|

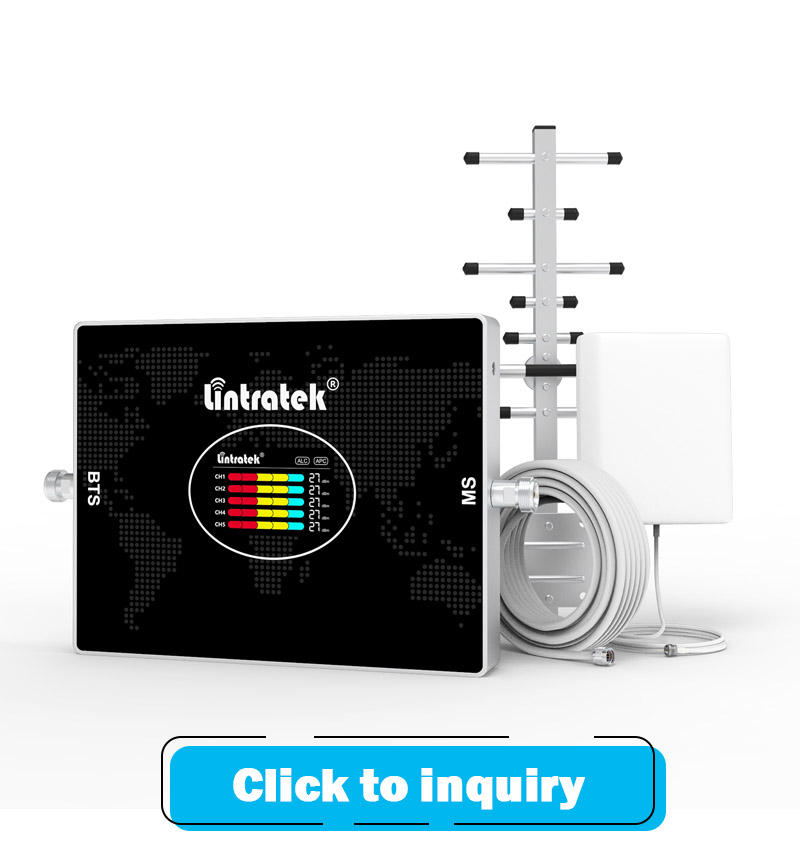

KW20L penta band*1 Yagi antenna*1 Panel antenna*1 10-15m cable*1 Power supply*1 Guide book*1 |
400-600sqm |
B8+B3+B1+B28+B7 √B8+B3+B1+B20+B7 √ |
YES |
|
|
|

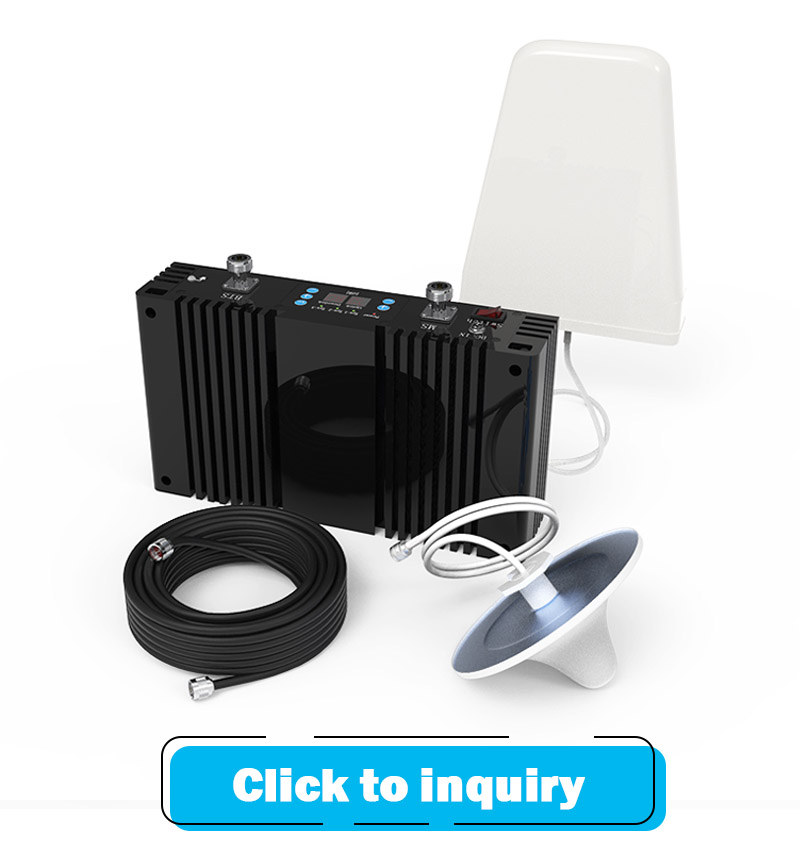

KW23F tri band*1 LPDA antenna*1 Ceiling antenna*1 10-15m cable*1 Power supply*1 Guide book*1 |
1000-3000sqm |
B5+B3+B1 √ B5+B8+B3 √ B8+B3+B1 √ B8+B1+B7 √ B3+B1+B7 √ |
AGC+MGC |
In the product list, we show you some functional models of multi-band signal amplifiers, including tri-band amplifier, quad-band amplifier and even penta-band amplifier. If you are interested in them, please click the products’ pic for more details, or you can contact us directly to inquire about suitable network solutions. We will provide you whole service of network boosting solution with reasonable price. We also have many other different designs here we still haven’t mentioned yet, pls click here to download our product catalog.
If you would like to customize a special frequency band to meet your local market needs, please contact the Lintratek sales team for information and discounts. With more than 10 years of experience as a manufacturer of telecom products such as signal amplifiers and booster antennas Lintratek has our own R&D laboratory and warehouse to provide you with the best OEM & ODM services in the telecommunication industry.
