Mobile Signal Coverage for a 10,000㎡ Basement: Lintratek Provides the Comprehensive Solution

A Signal Solution in a 10,000 Sq.m. Underground Garage: How a Hangzhou Residential Complex Achieved Full 5G Coverage from All Major Carriers

In today’s society, smartphones have become an indispensable part of daily life. Everything from communication and mobile payments to navigation and online entertainment relies on stable, high-speed mobile network signals. However, for vast underground spaces like large parking garages, the barriers presented by reinforced concrete structures and the rapid attenuation of electromagnetic waves often turn these areas into anxious “signal dead zones.” This not only causes inconvenience for drivers—finding their car, making calls, scanning codes for payments—but also hides the safety hazard of being unable to call for help in an emergency. Therefore, providing comprehensive and stable mobile signal coverage for underground garages has transitioned from a “value-added service” to a “standard requirement” for modern construction, especially in new residential complexes. This article uses the successful case of a 10,000-square-meter underground parking garage in Hangzhou, Zhejiang Province, as a blueprint to elaborate on how advanced signal coverage technology can overcome this challenge.

I. Project Background & Needs Analysis: The Communication Dilemma Deep Underground

1. Project Overview: A Signal Vacuum in a Vast Space

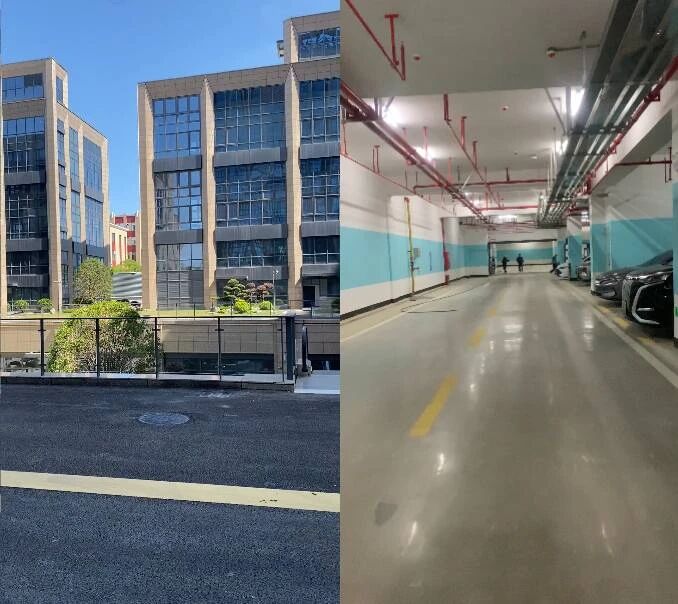

The project site for this case study is the underground parking garage of a high-end residential complex in Hangzhou, Zhejiang Province. This parking garage is large-scale, spanning two levels with a total floor area of 10,000 square meters—6,000 sq.m. on B1 and 4,000 sq.m. on B2. Buried deep underground, such an expansive space is shielded by thick concrete layers and soil, forming a natural barrier that makes it difficult for signals from above-ground base stations to penetrate. Before the project implementation, professional surveys confirmed that the area had absolutely no signal from any of the three major carriers—China Mobile, China Unicom, and China Telecom—making it a typical signal vacuum.

The client discovered Lincreate Technology, a company with profound expertise in the signal enhancement field, through the new media channel—the video account “Lincreate Signal Booster”—and commissioned them to develop a professional solution for this棘手 problem.

2. Cell phone signal booster for basement Core Requirements & Project Challenges

The client’s demands were clear and urgent, primarily reflected in the following aspects:

• Regulatory Compliance: With increased national focus on communication infrastructure, many cities now have clear “Technical Standards for Communication Supporting Facilities.” These regulations require public areas like underground parking garages and elevators to have effective signal coverage; otherwise, the project cannot pass inspection and be delivered. This makes signal coverage not an option but a mandatory requirement.

• User Experience & Safety Needs: For a modern residential complex, no signal in the underground garage significantly degrades the living experience for residents. Drivers cannot take calls in their cars, cannot use apps to find their vehicles or make payments after parking, and cannot even make emergency calls if their car breaks down or they encounter a crisis—situations neither the property management nor the developer wants.

• Severe Technical Challenges:

  • Large Area, Significant Depth: Covering 10,000 square meters places high demands on equipment power and network architecture. The depth of B2 further exacerbates signal transmission loss.

  • Full Standard Coverage: There was a need to simultaneously enhance 2G/3G/4G/5G signals for all three major operators, ensuring users with different carriers and phones from various eras could make calls and access the internet normally.

  • Signal Attenuation & Interference: The enclosed underground environment acts like a “Faraday cage,” where electromagnetic waves reflect and decay rapidly. Traditional small repeaters or single antennas cannot achieve dead zone-free coverage.

Facing these challenges, a simple, cheap mobile signal booster (typically used for homes or small offices) is far from sufficient. A systematic, engineered professional solution is essential.

II. Solution Design & Implementation: The Precise Application of an Optical Fiber Repeater System

After preliminary detailed online communication and an on-site survey by Lincreate’s technical team, a solution termed the “Dedicated Signal Coverage System for Residential Underground Parking Garages” was finalized. The core technology of this solution is the Optical Fiber Repeater System, which perfectly addresses the pain points of covering large, deep spaces.

1. Technology Selection: Why an Optical Fiber Repeater?

Unlike traditional repeaters that directly amplify radio signals, optical fiber repeaters adopt the advanced concept of “optical-electrical conversion.” Its workflow can be simply understood as:

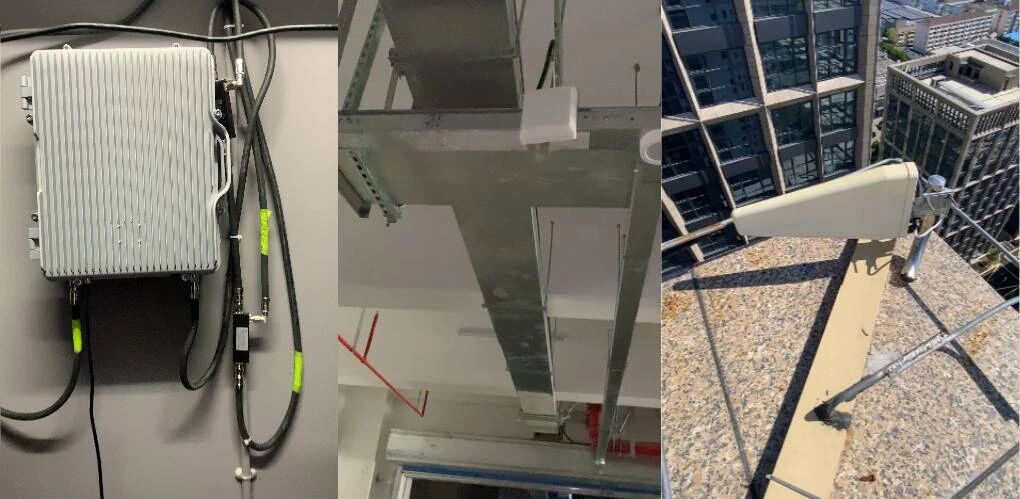

• Signal Acquisition (Donor Antenna): On the outdoors ground level, in a location with excellent signal quality from all three major carriers (usually the rooftop or a direction close to nearby base stations), install one or more high-gain receiving antennas (donor antennas) to purely capture mobile communication signals from the various base stations.

• Optical-Electrical Conversion & Transmission (Host Unit & Fiber): The received RF signals are transmitted via cable to the repeater’s Master Unit located in the equipment room or weak current shaft. The Master Unit converts these RF signals into optical signals. Subsequently, fiber optics are used for long-distance transmission. Fiber optics offer the tremendous advantages of very low loss, immunity to electromagnetic interference, and long transmission distances (up to tens of kilometers).

• Electrical-Optical Conversion & Coverage (Remote Unit & Service Antennas): The optical signals are transmitted via the pre-laid underground fiber optic network to the repeater’s Remote Units distributed across various areas of the parking garage. The Remote Units convert the optical signals back into RF signals and perform power amplification. Finally, through carefully installed indoor omnidirectional or directional antennas, the enhanced signals are evenly emitted into every corner of the parking garage.

2. Solution Advantages Analysis:

• Low Loss, Long Distance: Fiber optic transmission fundamentally avoids the significant loss inherent in long-distance cable transmission, making it particularly suitable for deep transmission scenarios like this project from the ground level to B2.

• High Signal Quality: Because the signal source is taken from a high-quality signal area above ground and transmitted “authentically” underground via fiber, it effectively avoids self-oscillation and interference issues common with traditional wireless repeaters, ensuring call clarity and internet speed.

• Flexible Networking, Comprehensive Coverage: For the large area of 10,000 sq.m., a “one-master-to-multiple-remotes” model can be adopted. One Master Unit connects to multiple Remote Units, each responsible for a specific zone (e.g., B1 East, B1 West, B2, etc.). Based on the site structure, the placement of indoor service antennas is rationally planned to ensure no dead zones in signal coverage.

• Equipment Reliability: The Lincreate repeater hosts mentioned in the case feature an IP65 waterproof and dustproof rating, making them very suitable for potentially humid underground environments. They also offer features like interference shielding and radiation prevention, ensuring the system’s long-term stable operation.

3. Implementation Process & Contingency Preparedness

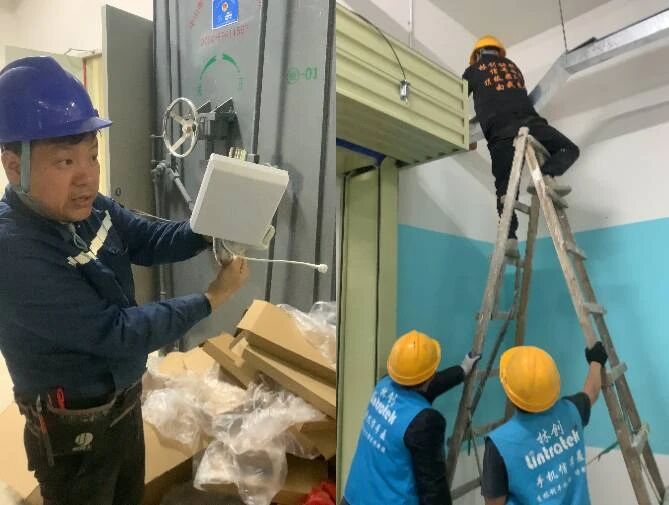

Professional implementation is key to the solution’s success. The Lincreate team drew precise antenna placement maps before construction to ensure every area would be effectively covered. During implementation, the team also prepared two additional emergency signal coverage plans as backups. This multi-plan preparation reflects the experience and strength of a professional service provider. They can flexibly combine plans and dynamically adjust antenna positions or equipment parameters based on on-site measurements (e.g., weaker signals in certain corners, unique structures in some areas), rather than rigidly executing a fixed process.

After system deployment, main line connections were made, and power-on debugging was conducted. Professional testing equipment was used to measure signal strength (RSRP), Signal-to-Interference-plus-Noise Ratio (SINR), and upload/download speeds at multiple points within the garage, ensuring all metrics met excellent standards. Ultimately, whether for voice calls, 4G/5G video streaming, or web browsing, performance was very smooth, completely eliminating the signal pain point in this underground parking garage.

Client feedback confirms the solution’s success: “From the initial survey to debugging and completion, the team was professional and efficient throughout. We had contacted other communication companies before, but their professionalism was unsatisfactory. Lincreate truly deserves its position as a leader in the industry!” — Project Manager, Client Side. This praise affirms not only the project’s outcome but also Lincreate’s all-around professional capability from technology to service.

III. Summary & Outlook: Replicable Experience & Future Vision

The successful coverage of the 10,000 sq.m. Hangzhou underground garage provides a highly valuable reference model for similar scenarios. The core of this solution—the Optical Fiber Repeater System—with its stable, efficient, and flexible characteristics, can be fully replicated for signal coverage projects in other large enclosed spaces like new residential complexes in different cities, large commercial complexes, subway stations, and tunnels.

Even more valuable is the learning and evolution capability demonstrated by Lincreate Technology after project completion. The technical team promptly shares problems encountered during construction, difficulties overcome, and final results achieved with the business team. This continuous knowledge accumulation and experience transfer constantly enrich and optimize the company’s solution repository, enabling business personnel to be more adept and confident when facing new, similar projects, achieving a virtuous cycle of “one practice, benefits for all.”

As a high-tech enterprise with products reaching 155 countries and regions worldwide and serving over 1 million users, Lincreate’s deep cultivation in the mobile communication field revolves around actively innovating based on customers’ evolving needs. From solving weak signals in small home areas to overcoming the communication challenges of vast underground spaces, they consistently remain at the forefront of technology application.

Conclusion:

“Making the world free of blind spots and enabling seamless communication for all”—this is not only the corporate vision of Lincreate Technology but also a direction society should strive for in the digitalization process. The signal coverage of a 10,000 sq.m. underground garage might seem like just an engineering project, but behind it lies a profound insight into the needs of modern life, the precise application of communication technology development, and a human-centered concern for safety and convenience. When vehicles drive into what was once a signal-silent underground abyss, the full signal bars on the phone screen represent not just the free flow of a call or a message, but also a sense of composure and peace of mind bestowed by technology upon modern life.
