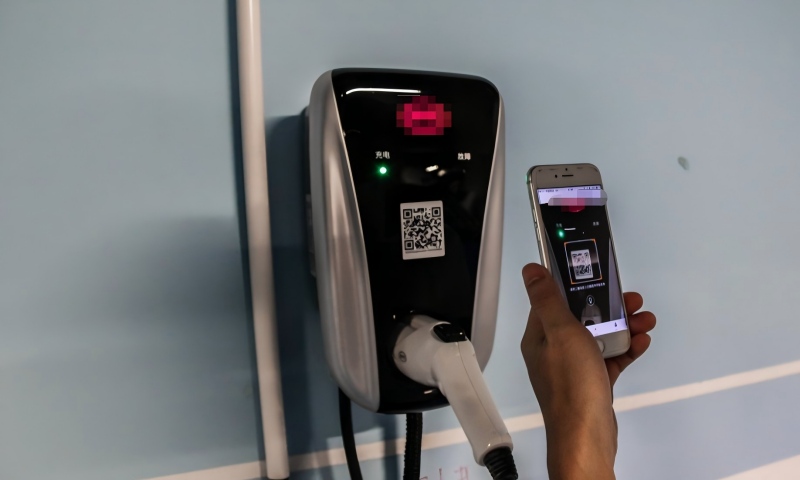

At a newly‑opened shopping mall, we saw a frustrating real‑world scene. A vehicle owner circled his car in the level‑2 underground parking lot, waiting nearly forty seconds just to load the EV‑charging QR code.
He shouted toward the exit: “Still cannot scan! This keeps happening over and over.”

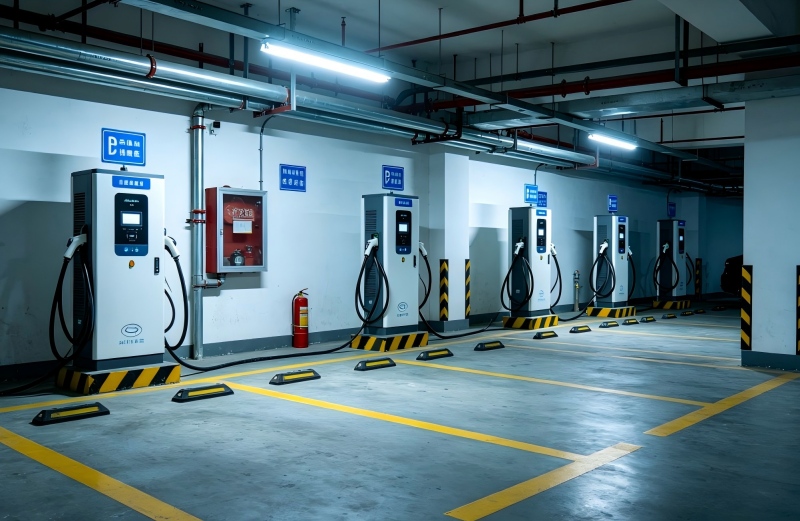

This mall has two underground floors covering roughly 12,000 square meters. Even after expanding EV charging piles from six to twenty‑four, customer complaints kept growing along with visitor traffic.
The mall operation manager put it plainly: “Shoppers can accept not finding a certain product in‑store. But they hate waiting ten minutes inside a garage just to complete parking or charging payments.”
What are the existing problems?
Our team completed point‑by‑point site surveys and logged actual RSRP readings before any retrofit work.
- Ramp entrance on B1: ‑90dBm, barely usable
- Mid‑corridor on B1: ‑108dBm, hard to send or receive social‑media messages
- EV‑charging zone on B1: ‑114dBm, QR‑code scanning frequently failed, parking payment almost impossible
- Elevator lobby on B2: ‑118dBm, no cellular service
- Deep parking bays on B2: ‑122dBm, total signal blackout
Picking The Right mobile network solution
Between B1 and B2 sits a mechanical equipment mezzanine filled with dense pipelines. Using traditional coaxial‑cable‑based 4g repeater gear would require breaking through two fire‑safety partitions. Fire‑approval procedures alone would take at least one month.
After weighing all constraints, we chose a fiber‑optic mobile signal repeater setup. Thin fiber cables run along existing cable trays, without touching fire‑separation boundaries. One host unit feeds six remote units to deliver coverage across both underground parking floors.
Antenna placement also makes a huge difference. Heavy load‑bearing columns deep on B2 work like signal barriers. If we only mount antennas near elevator lobbies, remote parking spots would still remain blind.

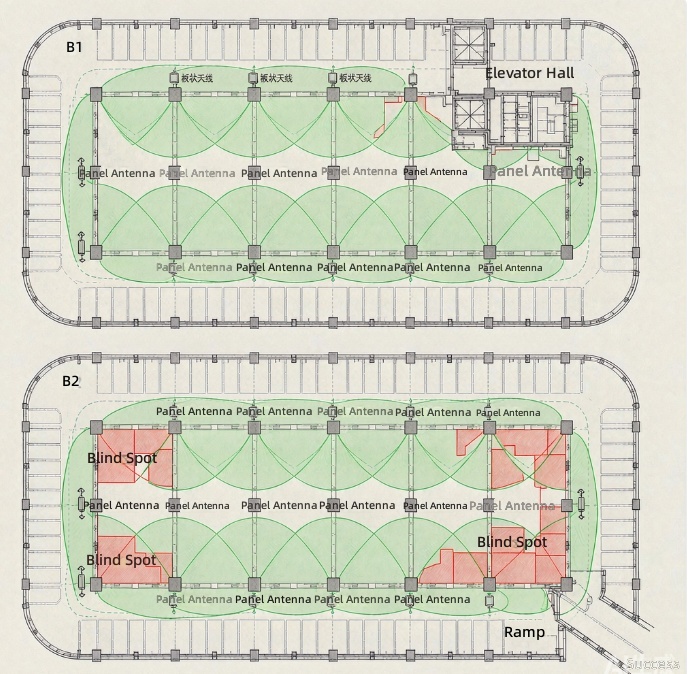

We spaced panel antennas every 15 meters, mounting them high on the sides of support columns. Spending two extra field‑work days eliminated dead spots in remote bays.
To avoid disturbing shoppers, our whole project plan kept all main customer passages open during daytime hours. All antenna hoisting work was scheduled for night‑time windows.

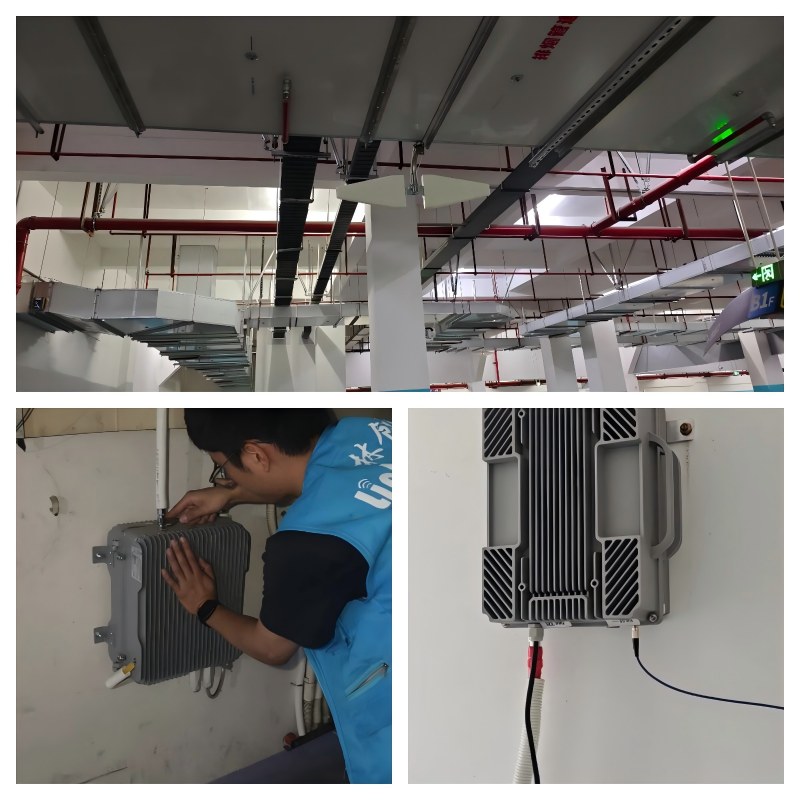

On‑site Installation Challenges
otal field installation stretched across two days.
On day one, one segment of existing cable trays was blocked by a physical height‑restrict barrier in the logistics passage. Fiber cables could not pass through as originally planned. Our field crew adjusted quickly and fitted concealed surface‑mount cable ducts with neat white covers. The mall operator confirmed this layout looked clean and acceptable for public areas.
On day two, we powered up and began tuning. Initial test readings at deep B2 parking bays hit only ‑76dBm, roughly 6 dB worse than our design target.
After quick troubleshooting, engineers found one poorly tightened antenna‑feeder connector. Replacing and re‑securing this fitting brought readings up to solid ‑71dBm, fully meeting project standards.

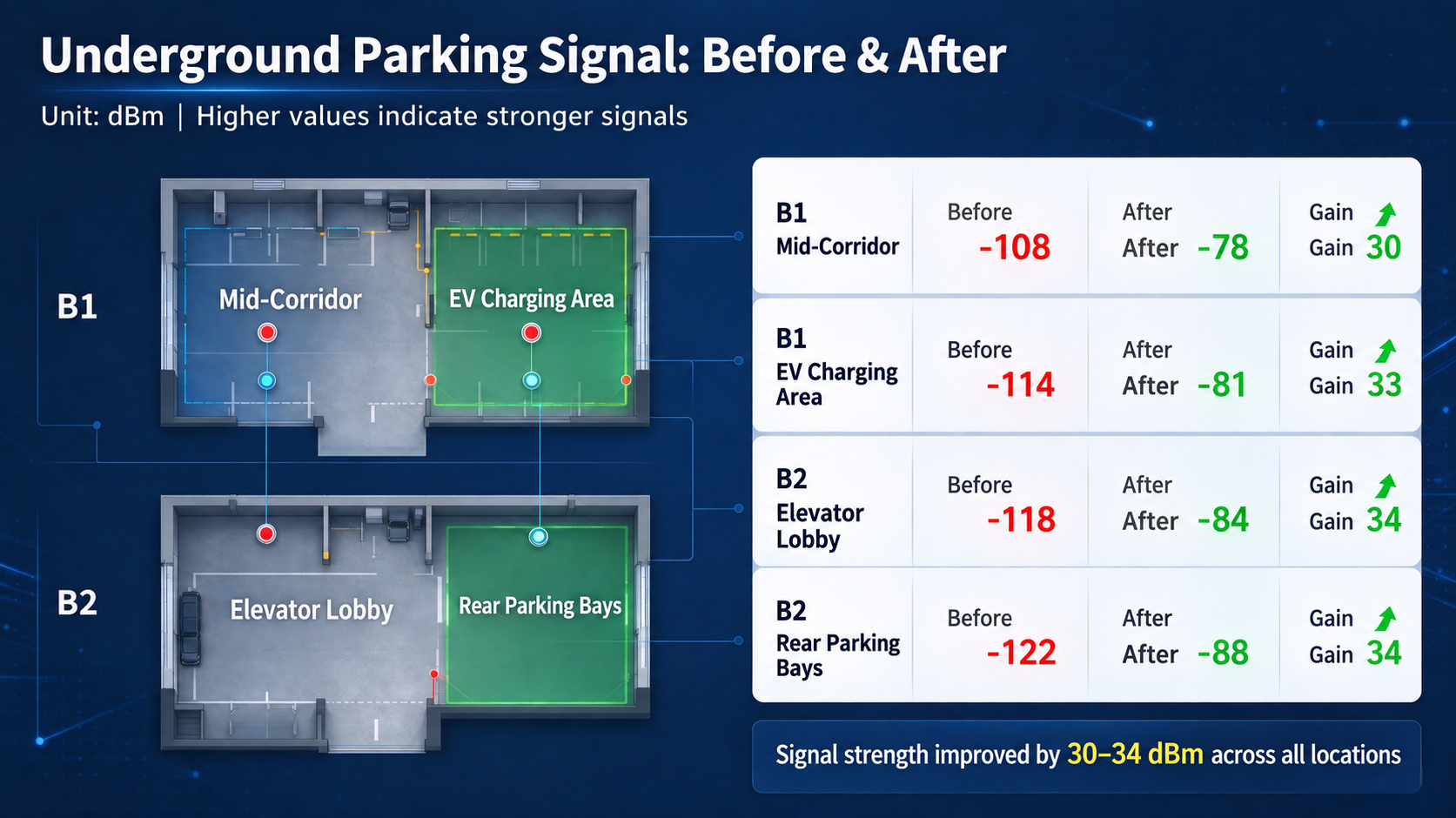

Before‑and‑After Signal Test Results
We re‑took measurements at exactly the same survey points after completing our cellular signal booster system deployment:
Every measured spot saw major signal improvements.
Real Business Feedback One Month Later
We followed‑up thirty‑days post‑launch. The mall manager shared clear operational changes.
Garage‑related customer complaints dropped from an average of over 30 per month down to only three. EV‑charger usage jumped by 20 percent.
“Now drivers complete parking and charging payments directly from their vehicles, then walk straight into the shopping mall,” he told us. “Customer flow works far more smoothly.”
From a business perspective, the total hardware investment for this network booster is less than half of one month’s parking‑lot revenue for this property.
The mall previously tried low‑cost consumer‑grade amplifiers. Those cheap units only lifted signal strength by around 5 dB. Deep‑zone blind spots stayed completely unchanged. Mismatched gain ranges and frequency bands made that equipment practically useless for large commercial premises.
This project drives home one practical lesson for every RF contractor: site survey, customized design and careful on‑site commissioning steps cannot be skipped. Any cost you cut during these phases will circle back as user complaints and business losses for your end‑clients.
Lintratek manufactures power signal booster and mobile phone signal repeater hardware for commercial‑grade deployments. We handle scenarios ranging from underground parking garages, large‑scale commercial buildings, mobile network booster for office buildings, all the way to cell phone booster for rural areas.
If you are a system integrator, RF contractor or global distributor working on large‑space indoor‑coverage bids, feel free to reach out. Share your site conditions with our engineering team, and we can walk through a tailored mobile network solution for your next project.
