Lintratek KW05N Tri-band 2G 3G 4G Portable Cell Phone Signal Booster with 1000mAh Battery and ALC for Travel, Camping, Hiking, RV, Car

Short Description:

Lintratek KW05N is a portable cell phone signal booster that supports three frequency bands. With a built-in 1000mAh battery, it runs up to 6 hours and can charge your phone. The indoor antenna is built into the unit for easy setup. Featuring ALC to prevent overload, it’s ideal for cars and works with most vehicle antennas.

We supply OEM&ODM Service

Return Within 30 Days!

One-Year Guarantee & Life-Long Maintenance !

Send Inquiry

Product Detail

Product Tags

Product Introduction of KW05N 2G 3G 4G Portable Cell Phone Signal Booster

The Lintratek KW05N is a newly released portable cell phone signal booster, thoughtfully engineered to eliminate weak signal issues in various environments. Whether you're at home, traveling, or in remote areas, the KW05N delivers stable mobile signal coverage wherever you go.

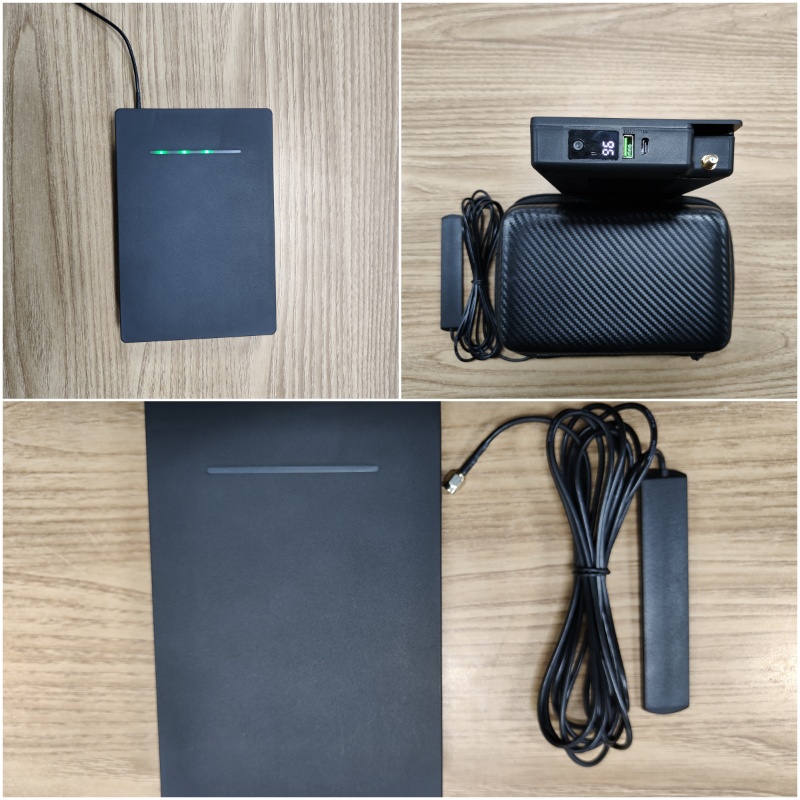

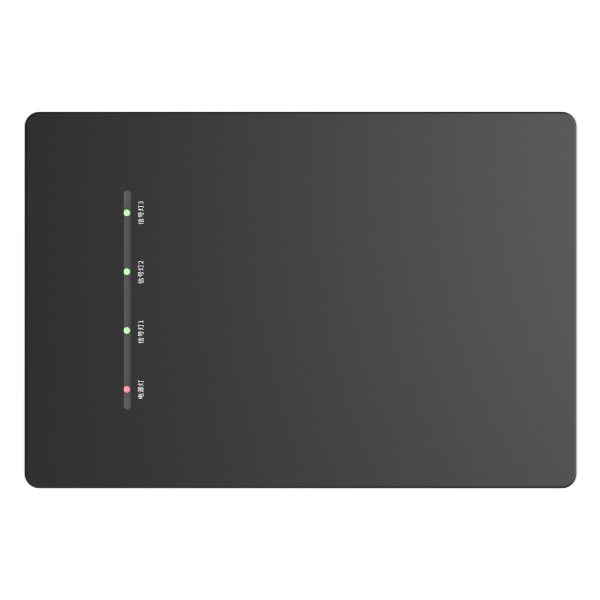

KW05N portable cell phone signal booster

Product Parameter (Specification) of KW05N 2G 3G 4G Portable Cell Phone Signal Booster

Feature	Protable Tri-band Cell Phone Signal Booster
Size	118312432mm, 0.6kg
RF Connector	1*SMA
Supporting Frequency	(Band 28/12/7) LTE 700MHZ (Band 20) LTE 800MHZ (Band 5) CDMA 850MHZ (Band 8) GSM 900MHZ (Band 4) AWS 1700MHZ (Band 3) DCS 1800MHZ (Band 2) PCS 1900MHZ (Band 1) WCDMA 2100MHZ (Band 7) LTE 2600MHZ
Max Coverage	30sqm
Output Power	uplink 20 ±2dBm	downlink 3 ±2dBm
Gain	uplink 50 ±3 dB	downlink 53±3dB
MTBF	＞50000 hours
Power Supply	Battery:1000mAh；DC:5V 3A EU / UK / US standard
Power Consumption	7.5W

Product Feature & Application of the KW05N 2G 3G 4G Portable Cell Phone Signal Booster

1.Key Features

Tri-Band Signal Repeating
The KW05N supports three mobile frequency bands, offering wide compatibility with 2G, 3G, and 4G networks in both urban and rural areas.

Long Battery Life & Reverse Charging

Powered by a 1000mAh built-in battery, it delivers up to 6 hours of continuous use. It also supports reverse charging, acting as a power bank to keep your phone running when needed.

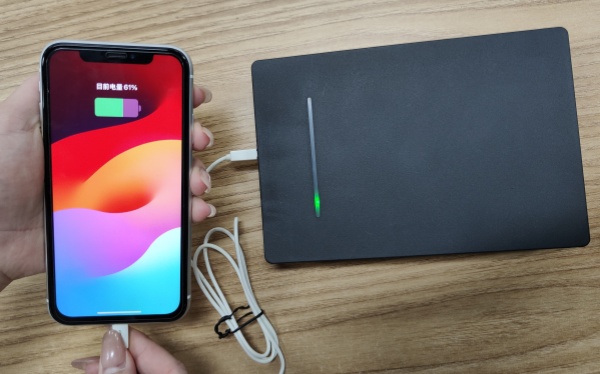

Reverse Charging form protable cell phone signal booster

2. Easy Installation

Integrated Design

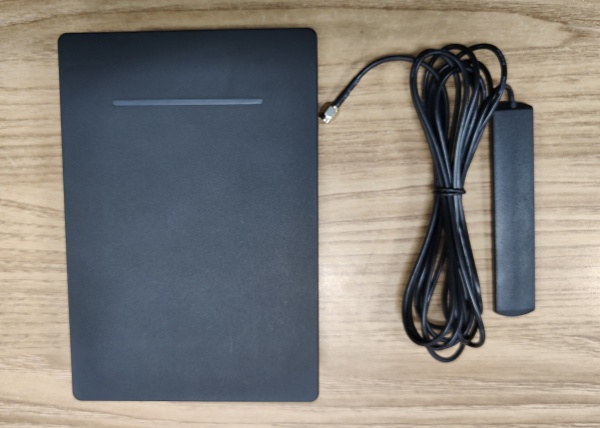

The indoor antenna is built directly into the device, simplifying installation by eliminating complex antenna layouts. Just set up the outdoor antenna, power it on, and enjoy an instant signal boost.

3. Advanced ALC Technology

Smart Gain Control
The KW05N is equipped with Automatic Level Control (ALC), which automatically adjusts gain to prevent overload from strong signals. This protects the system from damage and extends the booster’s lifespan, ensuring stable and reliable operation.

4. Designed for Versatility

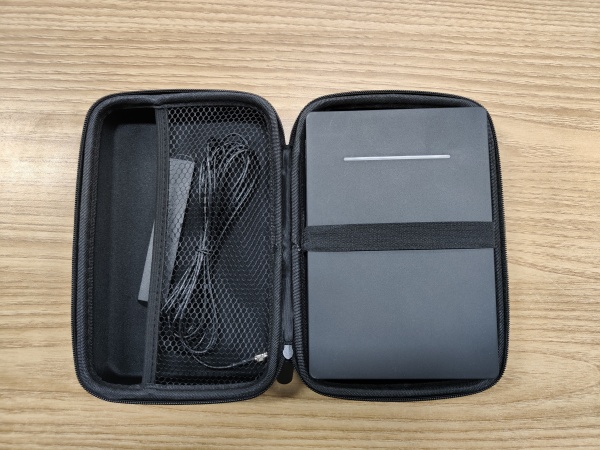

Travel-Friendly Portability
As a portable cell phone signal booster, the KW05N is compact and lightweight, making it the perfect companion for business trips, outdoor adventures, camping, hiking, or daily commuting. Slip it into your backpack or pocket and enjoy seamless signal coverage on the go.

In-Car Signal Enhancement

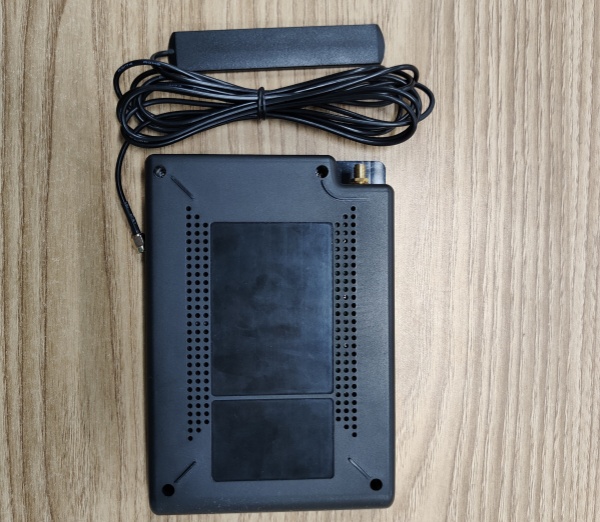

Ideal for vehicle use, the KW05N works perfectly with most car antennas. With its built-in battery and simple setup, it requires no permanent installation. Just connect the outdoor antenna and you're ready. Especially suitable for RVs, it allows flexible placement and convenient relocation.

Product Qualification of the KW05N 2G 3G 4G Portable Cell Phone Signal Booster

All different models of signal repeater including this KW16L 4G mobile booster has passed the whole production process and the function test, for becoming perfect goods when you receive it.

Delivery, Shipping and Service of the KW05N 2G 3G 4G Portable Cell Phone Signal Booster

All different models of cell signal boosters including this 2G 3G 4G Portable Cell Phone Signal Booster has passed the whole production process and the function test, for becoming perfect goods when you receive it.

FAQ

Q: Why the cell phone signal booster cannot work after installation?
A: 1. Please check the distance between outdoor antenna and indoor antenna whether keep away than 15m or not, in order to avoid self-interrupt.
2. Please check the direction of outdoor antenna whether point to the base station.

Q: How can I get the goods? Can you tell me the shipping time?
A: We will deliver your goods by express, such as, DHL, FedEx, UPS, TNT and EMS.
There are different shipping periods to different countries, our oversea salesman will tell you the shipping time according to clients’ delivery address.

Q: Can the repeater be installed outside?
A: No, it can’t, although he is resistant to high temperature (-10 °C-55 °C), it cannot be waterproof.

Q: Can you accept cash on delivery?
A: Sorry, we can only deliver the goods after you pay the order in advance.
