Fourteen years working with global RF installers and wholesale partners has made it clear underground mall parking lots rank among the most tricky commercial coverage jobs. Thick reinforced steel and concrete form total signal barriers deep below retail floors, creating full dead zones that hurt mall foot traffic and merchant satisfaction long term.
This real project took place at a large shopping complex in Wucheng County, Dezhou, featuring two full underground parking decks that sit 15 meters deep underground. Before our upgrade, every driver lost all cellular service once they drove below ground. Navigation froze instantly, mobile payment QR codes would not load, and visitors could not make calls to find their parked vehicles, triggering constant customer complaints to mall management.
The venue brought two strict non-negotiable requirements to the table. All construction and testing work had to run without disrupting daily store operation on the ground floor, and the full system needed to support signals for all three major local telecom operators at the same time, raising the technical complexity significantly for any standard amplification setup.

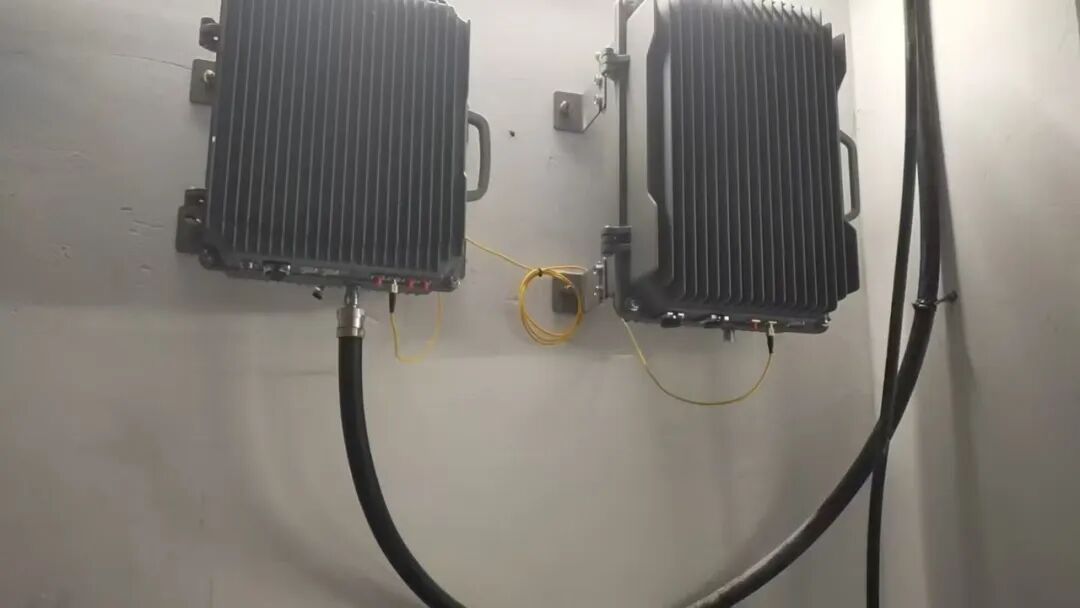

After full on-site spectrum scanning and signal strength testing, our engineering team delivered a tailor-made 1-to-7 digital fiber optic repeater layout built around Lintratek’s 5W commercial master mobile network booster paired with seven separate remote signal units. We matched high-gain log-periodic antennas to fit the space’s layered, partitioned parking layout, fully solving severe signal attenuation and multi-operator compatibility issues common in deep underground constructions.
Fiber transmission becomes the clear advantage over traditional coaxial cables for this type of project. It carries amplified RF signals with nearly zero power loss over long distances, brings stronger anti-interference performance, and maintains steady output across large, segmented underground zones with varying depth. Each remote unit supports independent power adjustment, letting our technicians fix uneven signal strength, overlapping coverage areas and unwanted signal leakage during installation.

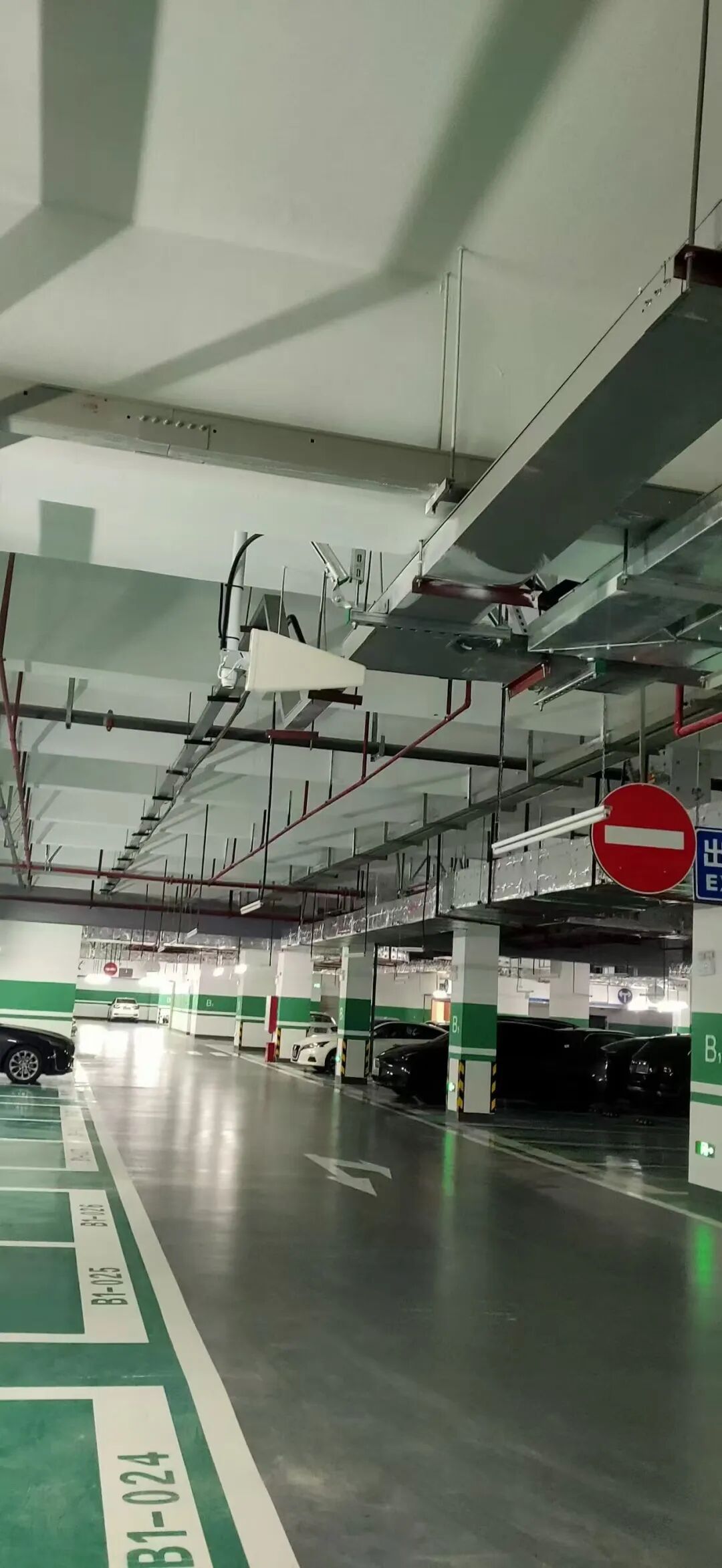

Our construction crew split into ground and underground teams to carry out staggered, segmented work shifts, so retail business never paused for a single hour during deployment. Technicians mounted directional antennas on parking support columns to precisely control signal radiation range, and calibrated every device with professional testing equipment. We finished all wiring, hardware mounting and system debugging within just 72 hours from project launch to full handover.

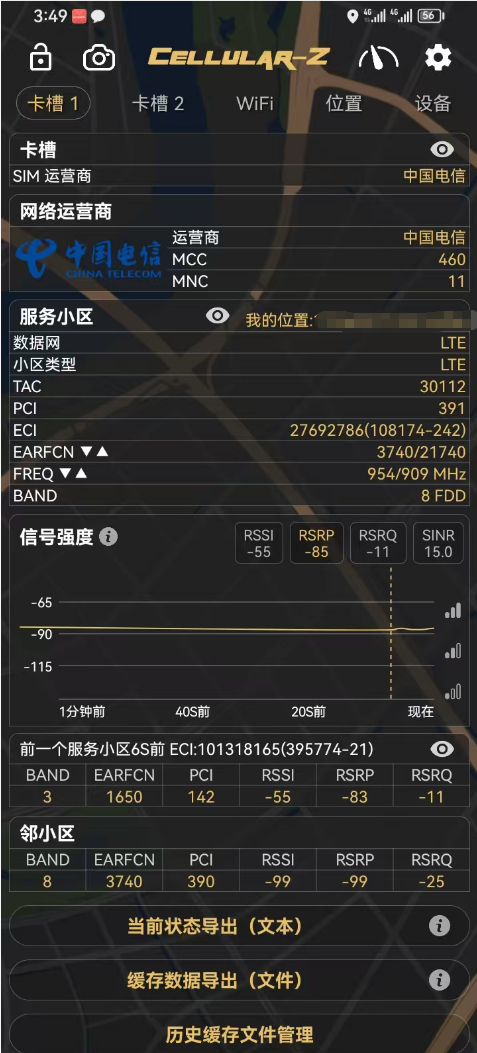

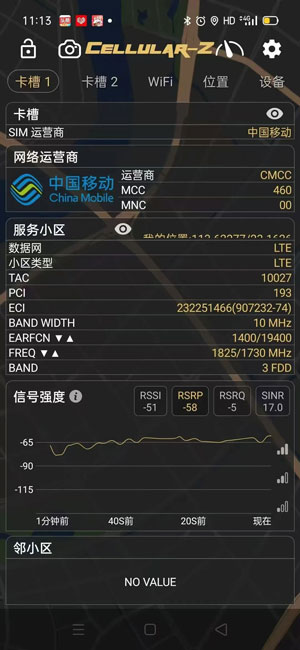

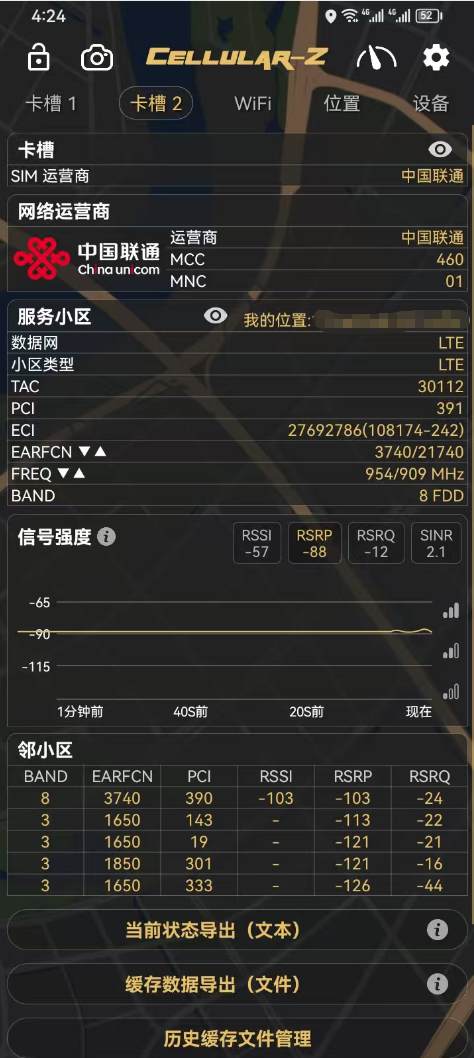

The post-install test results far exceeded the mall management’s original expectations. Signal strength stabilized above -70dBm on the first underground level, while the deeper second floor held consistent readings over -75dBm across every parking bay. Voice calls run smooth without cutoffs, 5G high-speed data stays steady, and daily functions including car navigation, ETC induction and mobile checkout work with a 100% success rate, wiping out all parking-related connectivity complaints entirely.
Stable underground cellular coverage directly lifted the mall’s operating performance. Within weeks after the project finished, average monthly visitor volume grew by 18%. Reliable mobile service turned a major customer pain point into a competitive advantage for the shopping center, and this full fiber repeater deployment now acts as a benchmark underground coverage case for local commercial property renovations.
We design and manufacture the full line of digital fiber repeaters ranging from 5W up to 40W output power at Lintratek, built to handle malls, hotels, industrial parks and long underground tunnels of all sizes. Our one-stop service covers free pre-project site surveys, customized layout drafting, hardware supply and post-install tuning support, tackling common industry hurdles such as uneven coverage, cross-band interference and deep-space signal fading.
If you are an RF contractor bidding underground parking or large commercial coverage tenders, or a global distributor stocking industrial fiber signal hardware for commercial real estate clients, our scalable master-remote fiber repeater systems deliver consistent, multi-carrier stable performance. Browse our complete fiber repeater product lineup, download regional band datasheets and request custom project layout consultation via our official site https://www.lintratek.com.
Post time: Aug-09-2026
