Every busy office building has a spot where the network gives up. A call cuts out halfway through a sentence. A file spins and never lands. A client holds a phone over the desk waiting for a payment code to clear. It happens now and then, and it still costs time and patience.

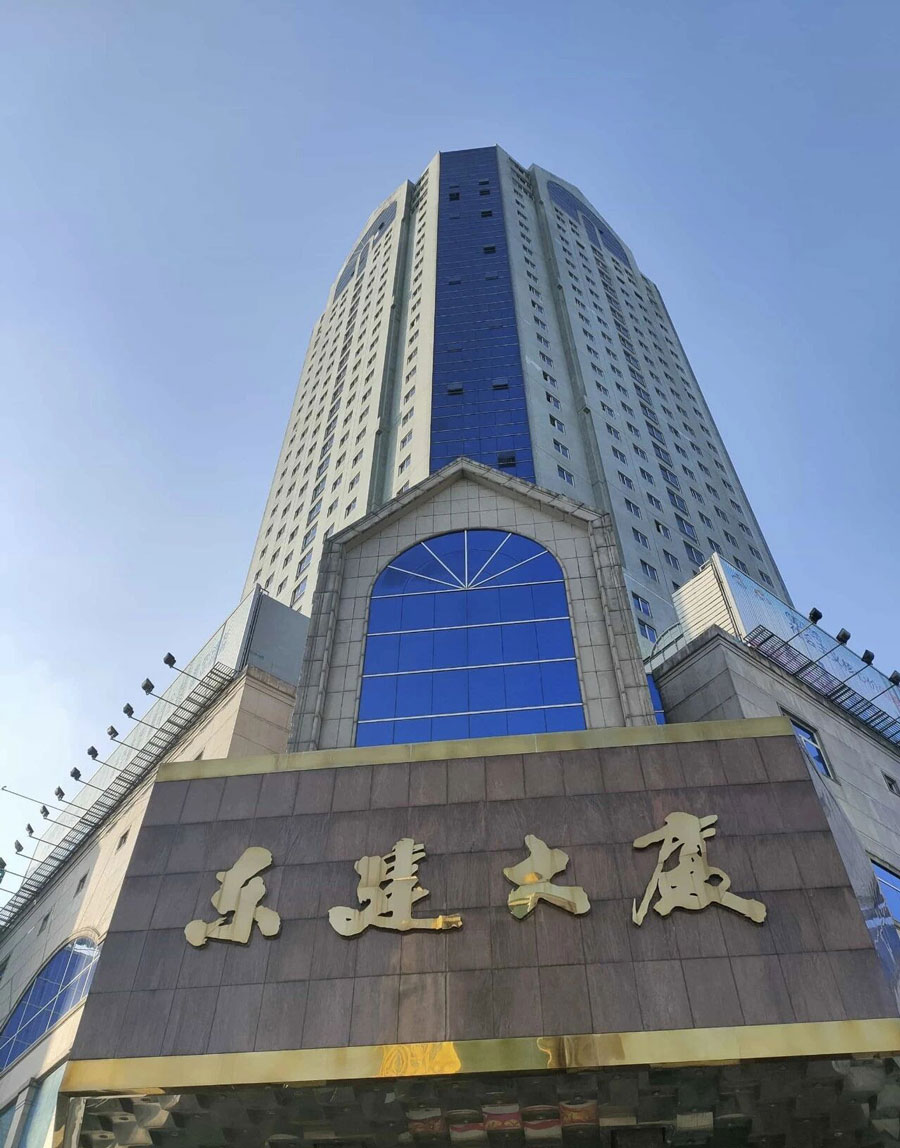

Dongjian Building in the Zumiao business district of Chancheng, Foshan, is an established Grade A office tower, and it had the same habit. Steel and concrete in the frame block a certain amount of radio traffic, and corridors on the upper floors drifted into weak coverage, with muffled calls and data that stalled. Nothing that stopped the building from running, but the kind of detail that quietly drags a working day down.
mobile network booster 2g 3g 4g lte 5g
The survey: a corridor that needed a little more
On 15 August our team walked the building and traced the pattern. The reinforced concrete structure did its usual job of shutting out outdoor coverage, and the public hallways were long and deep, so what did get inside arrived unevenly along the length. Those two factors explain most cases like this one.
They also point to the fix. A spot like this rarely needs a rebuild or a room full of equipment. What it needs is a clean outdoor source, caught properly, and antennas placed so the level stays even from one end of the run to the other.
The design: directional capture, head-end gain, multi-point distribution

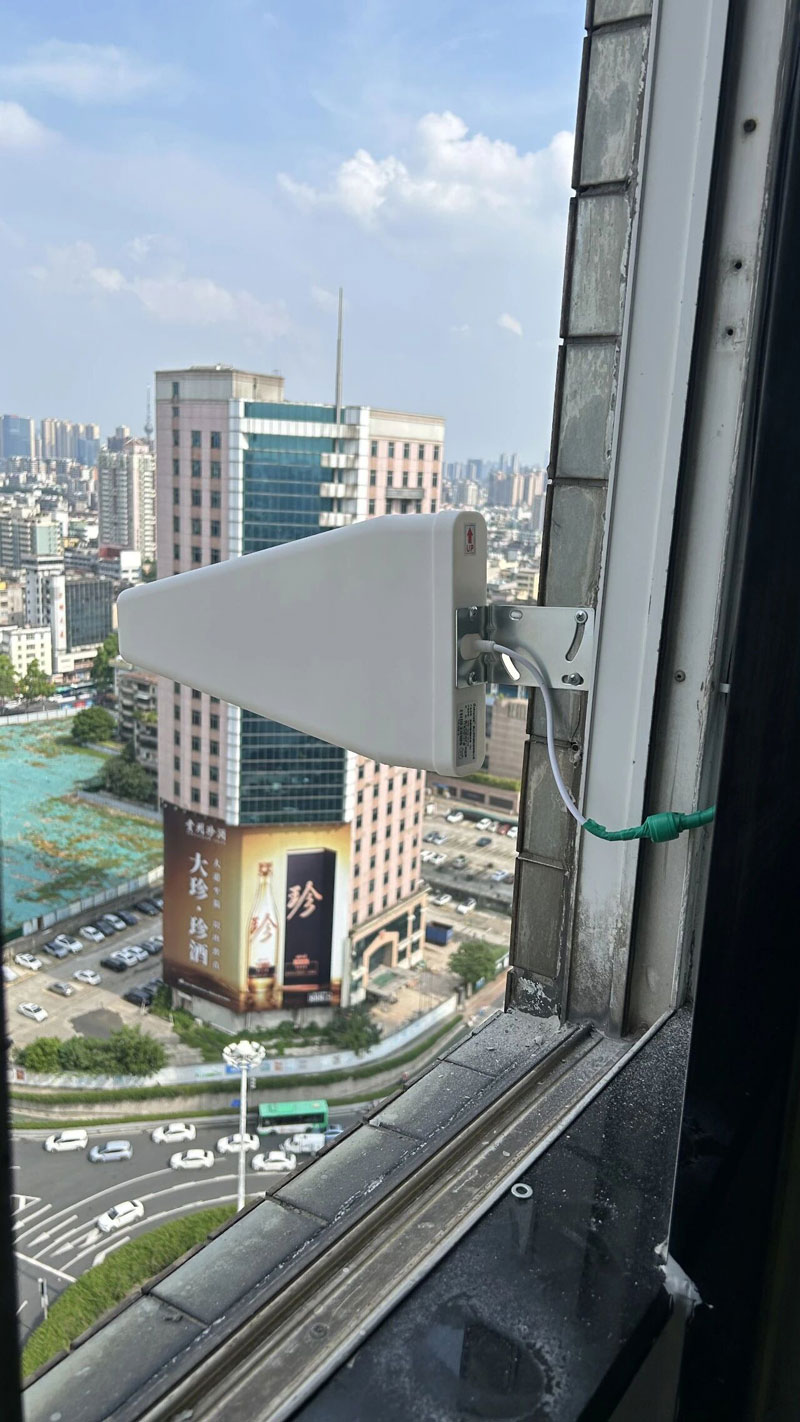

The plan was an outdoor waterproof wall mounted antenna sits at the window end of the corridor and aims at the nearest base station, so it collects that signal with some direction instead of hoping something drifts in. Feeder cable carries it to a Lintratek 27A-GDW engineering grade head end, a power signal booster that cleans the incoming feed and lifts it to a usable level.

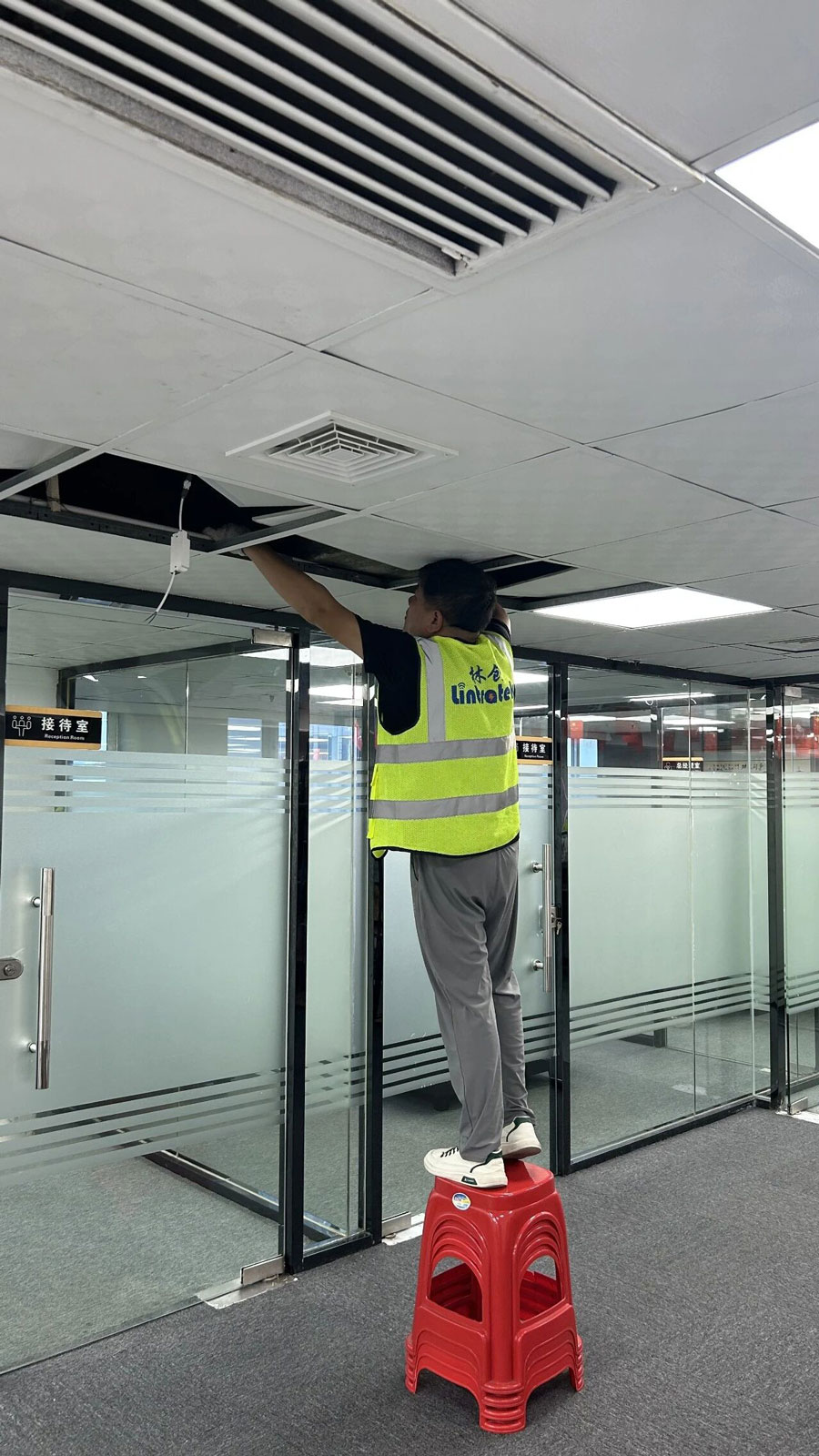

From there a two way splitter divides the output, and the two legs feed a mix of indoor wall mounted antennas and ceiling dome antennas spaced along the hallway. The wall units handle the long straight stretches while the ceiling pattern fills the pockets between them.
Put together, that is a cellular signal booster system sized for one floor rather than a whole tower, which is exactly what this job called for. Nothing was oversized, and nothing was left to chance.
Lintratek gsm network signal booster
What changed after commissioning

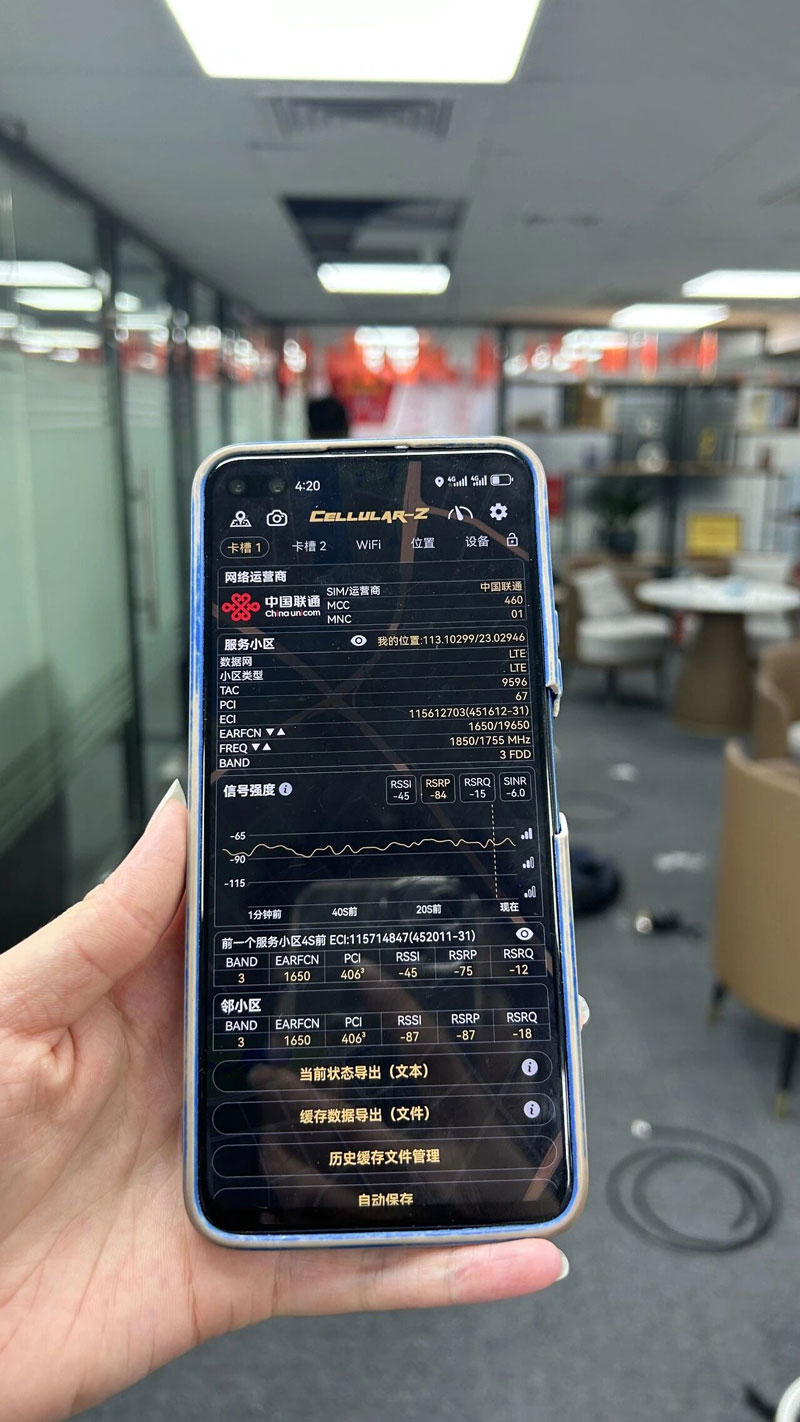

With the system running, coverage along the corridor settled at four bars and above from end to end. Calls came through clearly, and browsing at the busiest hours stopped stalling. Property management has not fielded a signal complaint since the upgrade, and staff no longer angle a phone toward a particular corner to hold a conversation.
That is what a good result looks like on a job this size. Coverage that works is quiet by nature, and the complaints stop.
Why each project starts with a survey, not a catalog
Office towers, industrial parks, shopping centres, factories and underground garages could hardly be more different from one another. Ceiling heights, structure, orientation and the position of the nearest tower all change the maths, which is why no single kit suits every building.
We work on one project, one survey, one plan: match the hardware to the structure, the area to be covered and the shape of the dead spot, then use the least equipment that does the job properly. Over-building is easy to sell and hard to justify, and clients who run facilities for a living notice the difference.
The same discipline applies in every market we serve. A dealer fitting a cell phone booster for rural areas at a distant lodge runs the same process as an installer working a city tower: measure what arrives, decide where it has to go, then spend only what the site requires.
mobile 2g 3g 4g signal booster
One team from survey to sign-off
Field survey, plan design, equipment selection, installation, commissioning and handover stay with one team, which shortens the gap between spotting a problem and closing it. We have worked in signal enhancement for more than a decade, and this tower is one of many office buildings, commercial complexes and industrial sites covered across Foshan and the rest of the country.
Hardware matters, and so does the way it is assembled. A mobile network solution is only as good as the survey behind it, which is why we keep that step in house instead of leaving it to whoever happens to install the unit.
If your building has that one hallway, one floor or one meeting room where the network always fails, send us the layout and a rough idea of where the weak spots sit. We will tell you what the job takes, what it does not need, and what the coverage should look like when it is finished. Reach us at repeater@lintratek.com, on WhatsApp, or through the contact form at https://www.lintratek.com/.
Post time: Oct-12-2026
