Best-Selling 5 Band Repeater B20 B8 B3 B1 B7 Mobile Cell Phone Cellular Signal Repeater

Short Description:

Lintratek supplies KW20L cell phone UMTS 5-band signal booster mobile network operator enhancing 2G 3G 4G 70dB gain with AGC function. KW20L five band series can cover for five bands at the same time.

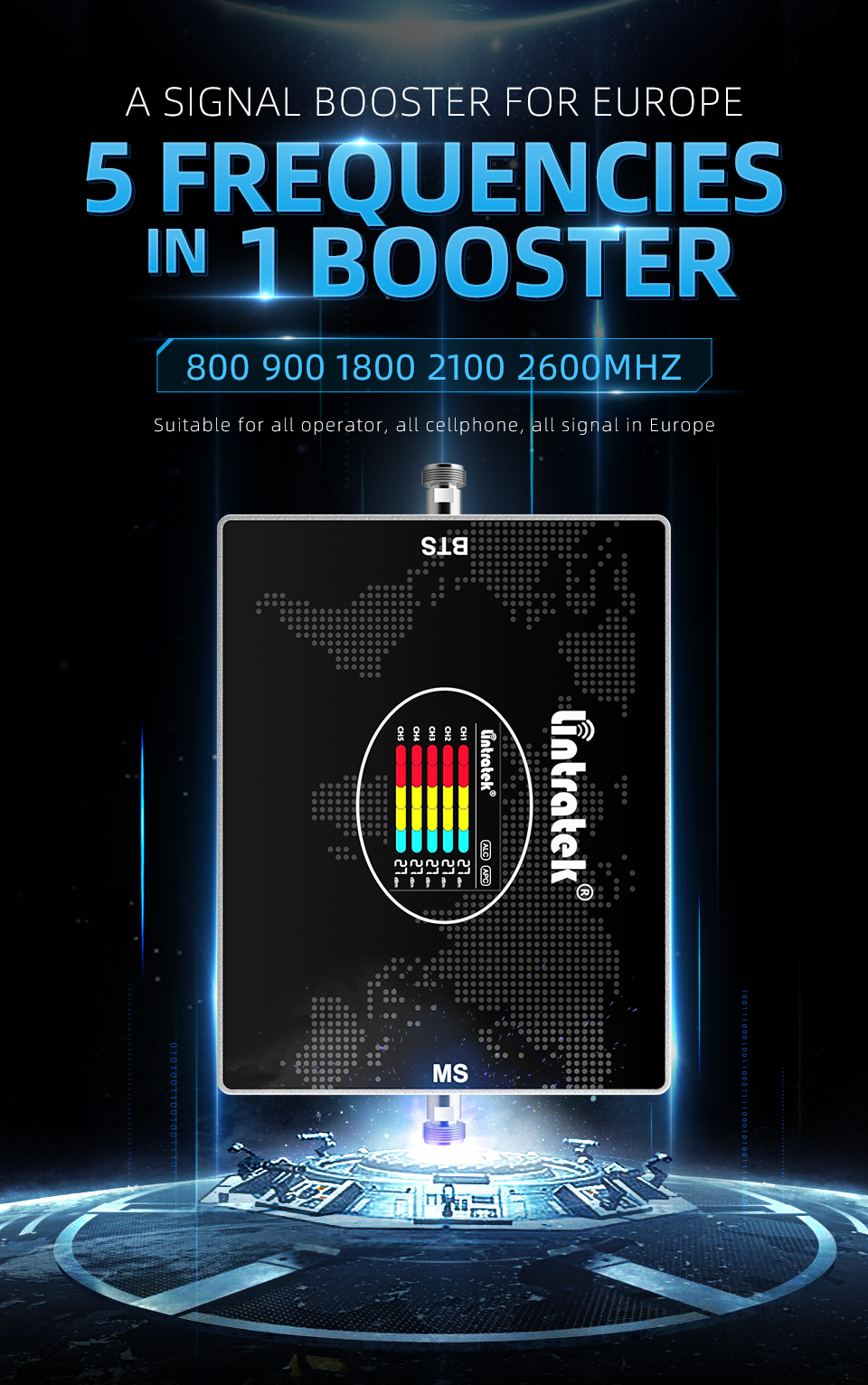

1.KW20L-LGDWL-B20 is hot sales in Europe countries. Cause for Europe, 4g can be 800mhz or 2600mhz. At one place, it can be boost different carriers signal frequency.
2.KW20L-LGDWL-B28/B7, is widely used at Asia, like Philippine. 4g already update for 700mhz B28.
3.KW20L-LLCPA-B12/B13, this model with frequency can be widely use in North America. The similar one KW20L-LLCPA-B28/B7 is hot in South America.

KW20L cell phone UMTS 5-band signal booster mobile network operator enhancing 2G 3G 4G 70dB gain with AGC function


We supply OEM&ODM Service

Return Within 30 Days!

One-Year Guarantee & Life-Long Maintenance !

Product Detail

Product Tags

Best-Selling 5 Band Repeater B20 B8 B3 B1 B7 Mobile Cell Phone Cellular Signal Repeater

Website:www.lintratek.com

To create much more benefit for shoppers is our enterprise philosophy; client growing is our working chase for Best-Selling 5 Band Repeater B20 B8 B3 B1 B7 Mobile Cell Phone Cellular Signal Repeater, With a wide range, high quality, realistic price ranges and very good company, we are going to be your finest enterprise partner. We welcome new and previous buyers from all walks of lifetime to contact us for long run company associations and acquiring mutual good results!

20L五频_01
To create much more benefit for shoppers is our enterprise philosophy; client growing is our working chase for China Signal Repeater and 3G 4G Repeater, Mobile Phone Repeater Distributors, After 13 years of researching and developing goods, our brand can represent wide range of products and solutions with outstanding quality in world market. We have now completed big contracts from many countries such as Germany, Israel, Ukraine, United Kingdom, Italy, Argentina, France, Brazil, and so on. You probably feel secure and satisfy when copperate with us.

20L五频002

Feature

Five (Penta) band AGC mobile network signal booster

Outlook Design

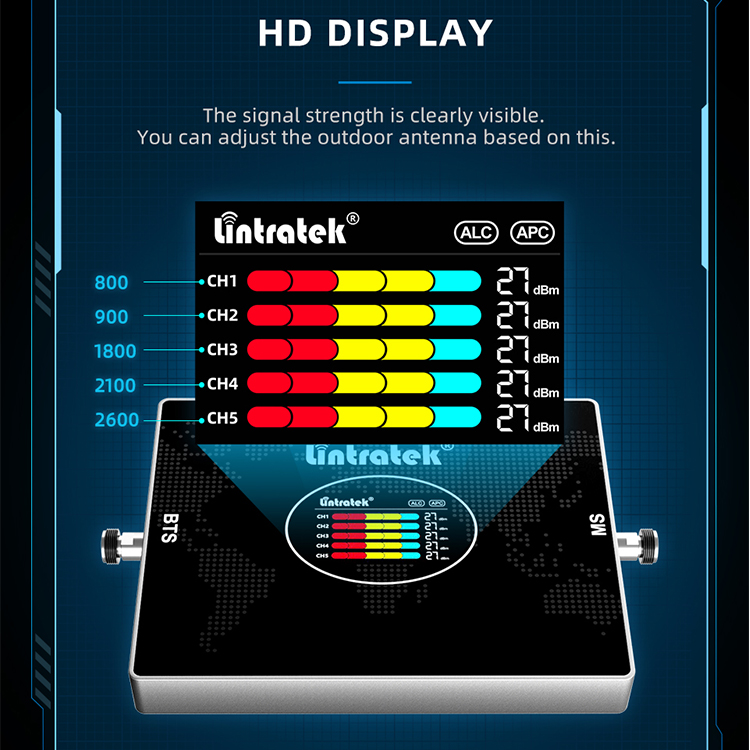

Black metal or color customized with LCD display screen

Size

245*165*32mm, 1.25kgs

Package Size

328*228*58mm, 1.55kgs

Supporting Frequency

KW20L-LGDWL 700/800+900+1800+2100+2600MHZ;

KW20L-LCDWL 700+800+850+1800+2100MHZ;

KW20L-LLCPA 700(B12+B13)+850+1900+1700MHZ;

KW20L-LLCPA 700+850+1900+1700+2600MHZ;

Bandwidth

17M+10M+25M+60M+45M

Max Coverage

800sqm

Output Power

15±2dBm

20 ±2dBm

Gain

55 ±2 dB

70±2dB

Ripple in Band

≤6dB

MTBF

>50000 hours

Power Supply

AC:100~240V, 50/ 60Hz;DC:5V 1A

EU / UK / US standard

Power Consumption

< 5W

20220902_45





1.2 KW20L cell phone UMTS 5-band signal booster
lintratek booster antenna

5. Then turn on the booster and check the function work. If it doesn’t work well, contact lintratek sales team for help.

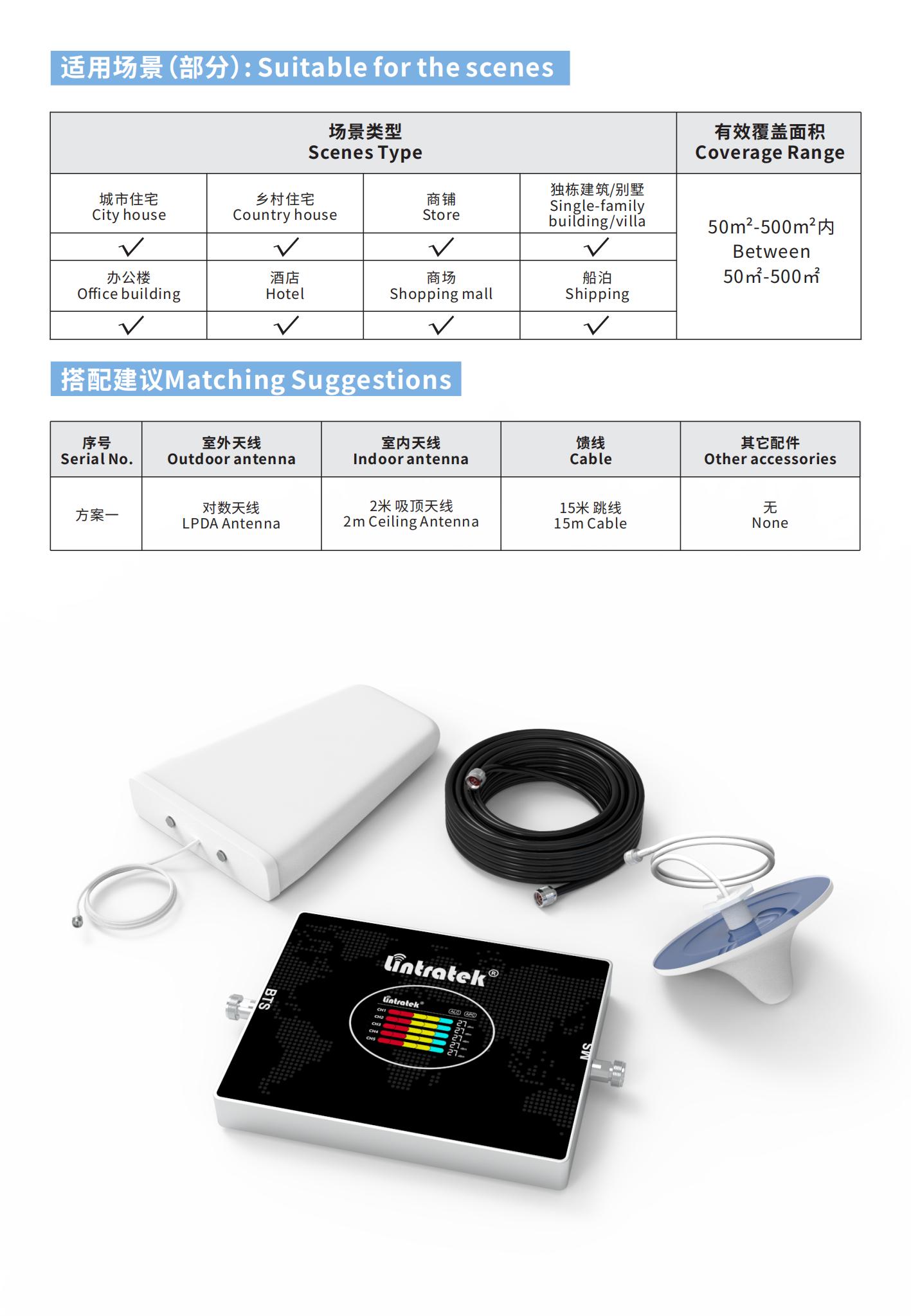

Lintratek mobile signal boosters are suitable in many different places wherever the mobile signal receipt is poor like tunnel, rural are, shopping mall, basement, KTV room, etc.

lintratek signal booster application

Best-Selling 5 Band Repeater B20 B8 B3 B1 B7 Mobile Cell Phone Cellular Signal Repeater

Website:www.lintratek.com

And for different size of the application, the network solutions are different, for example, like KW20L cell phone UMTS 5-band signal booster.
1.If coverage is 100-200sqm, you can consider for full kit with 1 indoor panel antenna.
(Full kit includes: outdoor LDPA antenna, outdoor 15m cable, booster, indoor panel antenna with 2m cable, adapter.)
2.If coverage is more than 200sqm or with 2 floor building, then you can consider for two to three indoor antennas.
(Full kit includes: outdoor LPDA antenna, outdoor 15m cable, booster, 1m cable, 2-way adapter, 2 indoor panel antennas, indoor cable 5m or 10m, adapter.)
If you are confused about the installation plan, you can contact with us for more professional suggestions.

1. Do you have signal booster for long distance signal transmission?
Yes, we also supply powerful repeater and fiber optical repeater for long distance signal transmission, about 1-3km.

2. How can I know the best installation suitable for my place?
You can supply us blueprint of your building that you want to cover. We will plan the most reasonable installation draft for you.

3. Can only connect one piece of indoor antenna with the signal booster?
No, you can install more than one piece of indoor antenna meeting your demand, we supply 2-way or 3-way splitter for you to realize it.To create much more benefit for shoppers is our enterprise philosophy; client growing is our working chase for Best-Selling 5 Band Repeater B20 B8 B3 B1 B7 Mobile Cell Phone Cellular Signal Repeater, With a wide range, high quality, realistic price ranges and very good company, we are going to be your finest enterprise partner. We welcome new and previous buyers from all walks of lifetime to contact us for long run company associations and acquiring mutual good results!
Best-Selling China Signal Repeater and 3G 4G Repeater, After 13 years of researching and developing goods, our brand can represent wide range of products and solutions with outstanding quality in world market. We have now completed big contracts from many countries such as Germany, Israel, Ukraine, United Kingdom, Italy, Argentina, France, Brazil, and so on. You probably feel secure and satisfy when copperate with us.
