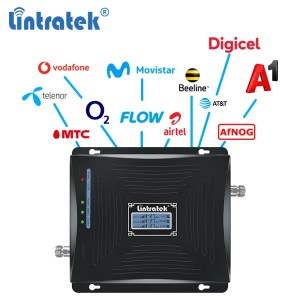

KW19L Factory Price Lintratek 19dBm 65dB Tri-band 2G 3G 4G Mobile Signal Booster for Small Business, Basement, Offce, House

Short Description:

The KW19L is a mobile signal booster developed by Lintratek, specifically designed for small commercial environments. It supports three cellular frequency bands with a power output of 80mW and a gain of 19dBm, providing mobile signal coverage of up to 500m² (5,400ft²). Common bands such as GSM, DCS, and WCDMA are supported, enabling 2G, 3G, and 4G signal enhancement across multiple areas. Additionally, the booster can be customized to support other frequency bands based on your needs, including LTE, PCS, and AWS.

We supply OEM&ODM Service

Return Within 30 Days!

One-Year Guarantee & Life-Long Maintenance !

Send Inquiry

Product Detail

Product Tags

KW19L Mobile Signal Booster detail---_01

1. Product Introduction of KW19L tri-band mobile siangl booster

2. Product Parameter (Specification) of KW19L Tri-band Mobile Signal Booster

Feature	Tri-band ALC 65dbi high gain mobile signal booster
Outlook Design	Golden or black metal or color customized with LCD display screen
*Size (DWH)*	23418222mm, 0.96kgs
*Package Size (DWH)*	31021055mm, 1.24kgs
Supporting Frequency	(B8+B3+B1) GSM+DCS+WCDMA 900+1800+2100MHZ; (B5+B8+B3) CDMA+GSM+DCS 850+900+1800MHZ; (B5+B2+B7) CDMA+PCS+LTE 850+1900+2600MHZ; (B5+B2+B4) CDMA+PCS+AWS 850+1900+1700MHZ; (B5+B2+B28) CDMA+PCS+LTE 850+1900+700MHZ; (B20+B8+B3) LTE+GSM+DCS 800+900+1800MHZ
Max Coverage	500sqm
Output Power	15±2dBm	19 ±2dBm
Gain	55 ±2 dB	65±2dB
Ripple in Band	≤6dB
MTBF	＞50000 hours
Power Supply	AC：100~240V, 50/ 60Hz；DC：12V 1AEU / UK / US standard
Power Consumption	< 6W

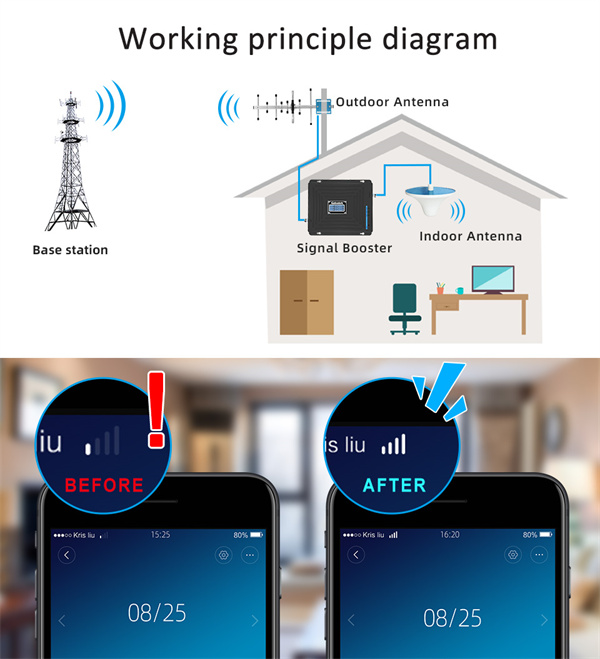

3. How does KW19L Tri-band mobile signal booster work?

Actually, with only one device of KW19L tri-band mobile signal booster it cannot work, the supporting accessories are necessary. A system of signal booster includes the host KW19L ri-band mobile signal booster, an outdoor antenna, an indoor antenna, length-customized cable. And if you want to cover much more areas, maybe you need several splitters to realize it connecting multiple indoor antennas. Then here I can introduce the working principle of KW19L tri-band mobile signal booster:

1. Find a place where better with 4-bar cell phone signal receipt outside of the building.

2. Install outdoor antenna at the site with better signal receipt. And outdoor antenna should be better pointed to the base station.

3. Install KW19L tri-band mobile signal booster inside and use 15m cable to connect the booster with the outdoor antenna. Caution: there should be isolation between the booster and the outdoor antenna, without the isolation (like wall), there would be an effect named self-interruption to obstruct the system.

4. Finally, use cable to connect with KW19L tri-band mobile signal booster and indoor antenna.

Then turn on the booster to test the working function. If there is any problem about the device, pls call Lintratek after-sales team for help.

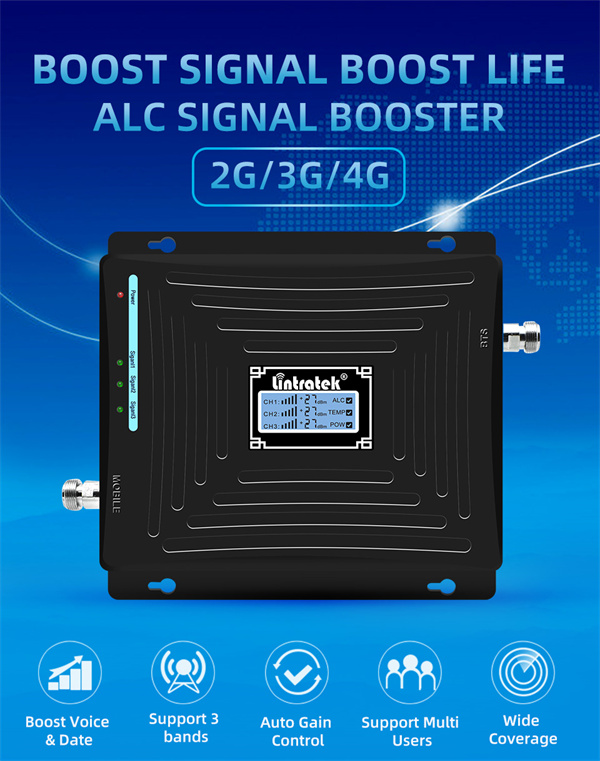

KW19L Mobile Signal Booster with ALC and Tri-band

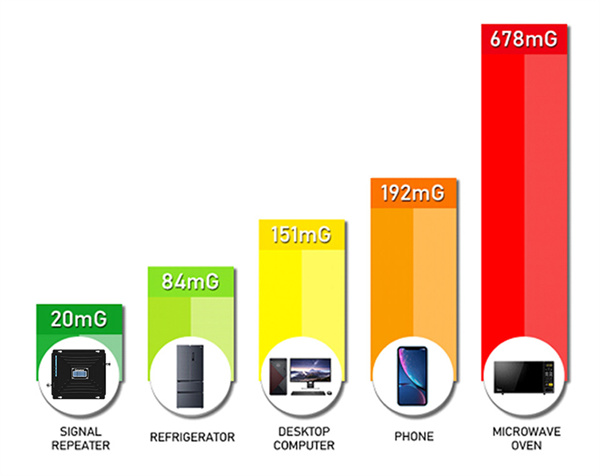

KW19L Mobile Signal Booster low-radiation

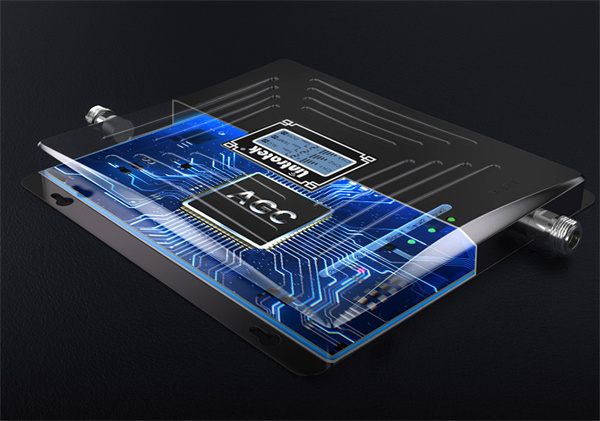

KW19L Mobile Signal Booster with ALC Function

4. Product Feature & Application of the KW19L tri-band mobile signal booster

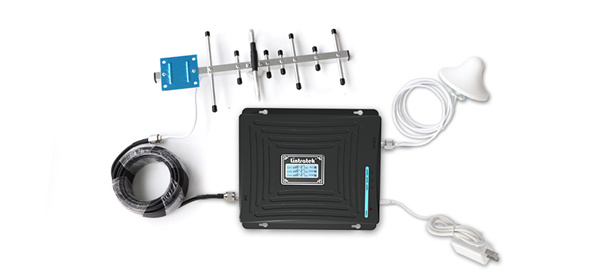

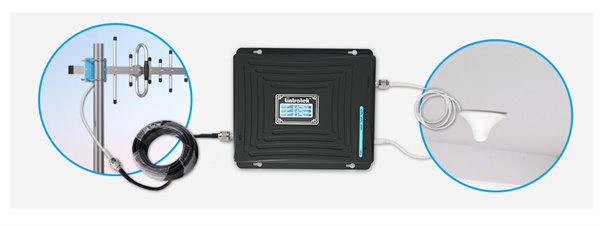

KW19L Mobile Signal Booster with Ceiling Antenna, Yagi Antenna and cable

Do you often get no signal when you are in the parking lot, elevator, home, office or other places? If you encounter such a situation, I recommend you to use a KW19L tri-band mobile signal booster.

And for different size of the application, the network solutions are different, to get network solution according to the applications, please click the following link for details.

☞ Small size or middle size building network boosting solution

☞ Large size building network boosting solution

☞ Long distance wireless signal transmission solution

☞ Vehicle network boosting solution

5.FAQ

Q1. The house has 500 square meters, can it be used?

A: It can use, but need more antenna, when you have a large area, it is recommended that you use a high power, high gain signal amplifier, so that the effect will be better.

Q2: What is the number of users that can use this at one time?

A: Generally speaking, this has no real limitations for users; it basically brings the signal from the signal station to your home or other places. But for others, it will work differently depending on their carrier, the available signal outside, and the location of the outdoor antenna.

Q3: Can we use signal amplifier in the car?

A: Yes, with car power and car sucker antenna can be used.

Q4: How far can the signal be received?
A: As long as there is a strong enough signal outdoors, the antenna can pick up the signal, and it is easier to receive and amplify the signal without obstructions.

Q5：How long does it take to ship after placing an order?

A: Depending on the quantity, if the quantity is large, it will generally take 7 working days to deliver the goods. If the quantity is small, it will be delivered within 1-3 working days.
