KW23C-GD Cellular Signal Booster dual band 70dB gain 23dbm 2G 3G 4G AGC for Mobile Phone Signal Enhancing

Short Description:

Lintratek supplies KW23C mobile phone signal booster dual band 70dB gain 2G 3G 4G AGC customization by Lintratek manufacturer. It can enhance 2 frequency bands for 2G 3G and 4G of network carriers, its output power is 23dbm, the gain is 70dbi. With LCD screen we can clearly see the frequency effect during it’s working. Normal models:

For South America & North America: KW23C-CA, KW23C-CP

For Africa, Asia, Australia & Europe: KW23C-CD, KW23C-DW, KW23C-GD, KW23C-GW


We supply OEM&ODM Service

Return Within 30 Days!

One-Year Guarantee & Life-Long Maintenance !

Product Detail

Product Tags

KW23C-GD Cellular Signal Booster dual band 70dB gain 23dbm 2G 3G 4G AGC for Mobile Phone Signal Enhancing

Model No.: KW23C-GD

Two-channel: GSM+DCS

Product Size: 180*110*18mm

Gain: 70db

Output:23dbm

Bandwidth: 25M+75M

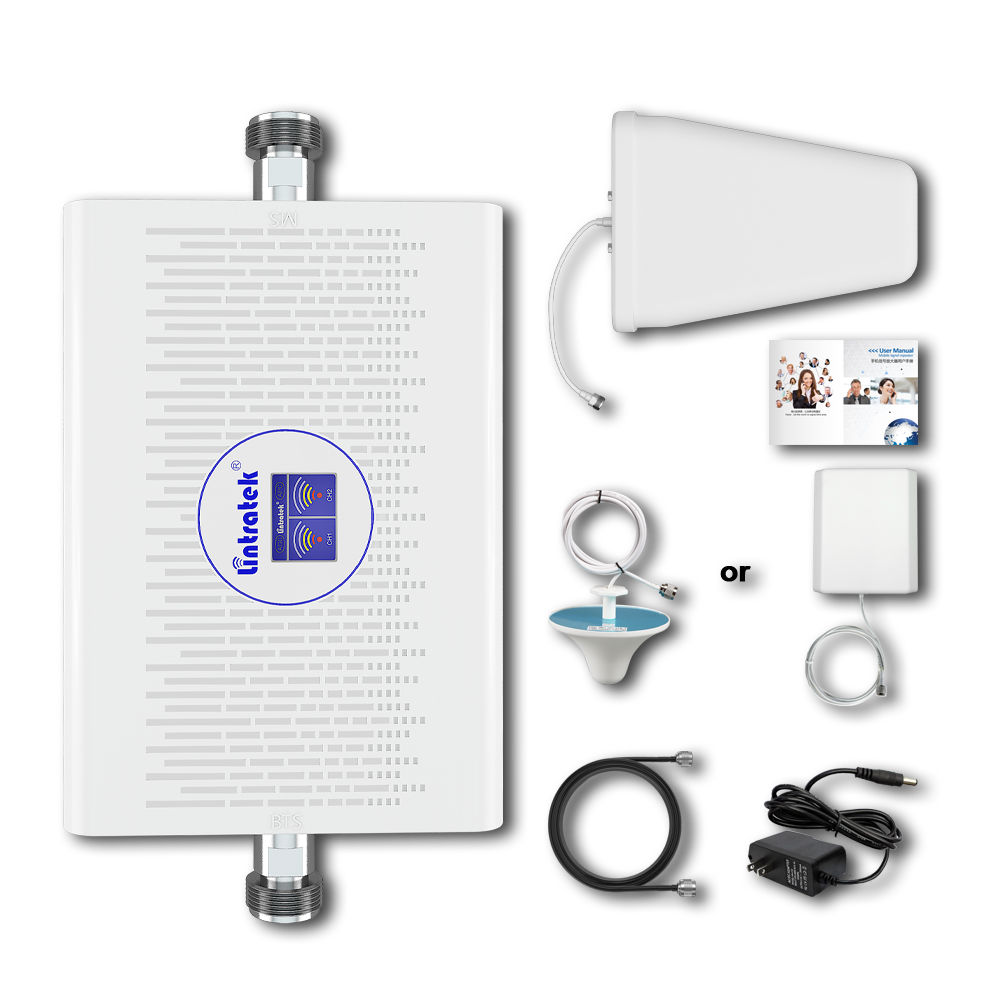

Full Kit Content:

1. signal booster KW23C-GD*1

2. outdoor antenna*1

3. indoor antenna*1

4. 10m cable*1

5. power supply*1

6. user manual*1

gsm-dcs-signal-booster

Product Introduction of KW23C mobile phone signal booster

KW23C mobile phone signal booster can cover for two kinds of signal frequency bands, for boosting GSM UMTS LTE signal receipt.
KW23C dual band signal booster is hot sale models in many countries because it can almost boost all kind of different frequency of network carriers of the whole world.

KW23C-GD/GW/CD/CG can enhance the phone receipt strength of Vodafone, Beeline, MTC, airtel, T-Mobile, A1 and so on of countries in Europe, Africa

KW23C-CP/CA is popular in South America and North America for boosting signal receipt of Movistar, Digicel, FLOW, AT&T, Verizon and others local network operators.

lintratek mobile signal booster

Product Parameter (Specification) of KW23C mobile phone signal booster

Feature

Dual band AGC mobile phone signal booster

Outlook Design

White metal or color customized with LCD display screen

Size

180*110*18mm, 0.58kgs

Package Size

272*145*50mm, 0.79kgs

Supporting Frequency

(B8+B3) GSM+DCS 900+1800MHZ;

(B5+B3) CDMA+DCS 850+1800MHZ;

(B5+B28) CDMA LTE 850+700MHZ;

(B5+B4) CDMA+AWS 850+1700MHZ;

(B5+B2) CDMA+PCS 850+1900MHZ;

(B20+B3) LTE+DCS 800+1800MHZ

Bandwidth

25M+60M / 25M+70M / 25M+75M

Max Coverage

600sqm

Output Power

15±2dBm

23 ±2dBm

Gain

53 ±2 dB

70±2dB

Ripple in Band

6dB

MTBF

50000 hours

Power Supply

AC100~240V, 50/ 60HzDC5V 1A

EU / UK / US standard

Power Consumption

< 5W

How does KW23C mobile phone signal booster work?

how does the cell phone signal booster work

As the picture above shows, we know the signal booster is usually used in some area far from the signal tower of different network operators.

One entire signal booster system is including one outdoor antenna, one indoor antenna, one signal booster device, and the cables is for connecting these three parts.

The outdoor antenna is set up outside for receiving the wireless signal from the signal tower, therefore, the direction of the outdoor antenna should be pointed to the tower, it's important.

The indoor antenna is installed inside of the building, make sure that it's in the center of the coverage that you want.

KW23C signal booster is the core of the system connected with the outdoor antenna and indoor antenna. The signal booster will process the signal received by outdoor antenna and send it to the indoor antenna by cable, finally the indoor antenna will release the signal enhanced for cell phone users.



Product Feature & Application of the KW23C mobile phone signal booster

The KW23C dual band mobile phone signal booster has AGC (Automatic Gain Control) function. With AGC function, the machine can recognize the gain environment and adjust the gain by itself, such a design can really prolong the life of the mobile phone signal booster.

Lintratek signal boosters can be used in many different places where mobile reception is weak, like home far away from signal tower, office (too many people in the same space), basement of house or storehouse...

application of mobile phone signal booster

We also supply powerful repeater and network solution plan for clients.

For large coverage network boosting like supermarket, basement parking lot...

For long distance wireless signal transmission. Click the blue words for more information about network solution

FAQ

1. What's the difference between two kind of dual band signal booster?
Usually the biggest difference between two different models of dual band signal booster is the specification: the gain and output, the outlook design and its material, the size and the feasible frequency band.

2. Do you have some models for boosting four frequency bands at the same time?
Yes, we have KW20L quad band signal booster even KW20L five band signal booster, can boost 4-5 frequency bands at the same time, these two designs are normally for home, house or store. We also have some powerful 70-80dbi gain repeater for enhancing signal of big area.

3. What is the mobile phone signal booster's warranty?
We supply warranty for our main product with about 12-24 months.

4. Why the signal booster's effect is not good?
There are some reason about this question: the distance between the outdoor antenna and the signal booster device is not enough; purchased wrong model of frequency band; the telecommunication environment is worst. When you find any problem of Lintratek mobile signal booster, please contact our after-sales team for solution.
